Parameter
|
|
One
|

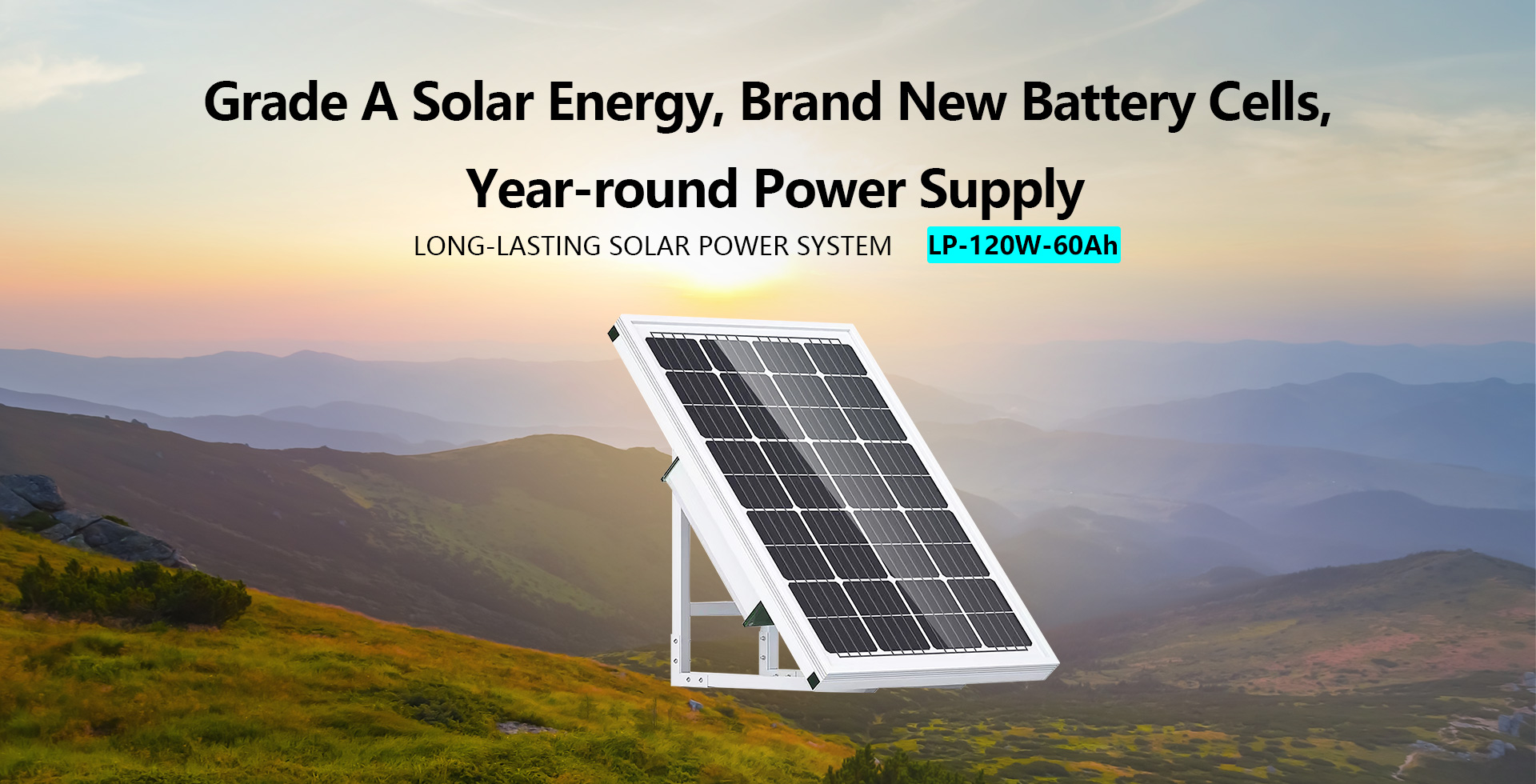

120W full new A-grade polysilicon silicon panel
|
|
Crystalline silicon cells used in national power stations, generating power 10W/h higher than the market, right-angle monocrystalline, peak voltage 18-22V
|
|
Anodized aluminum frame, waterproof rating IP66， 25-year linear power guarantee
|
|
Two
|
Lithium battery: ternary lithium, full new A 18650 battery cells
|
|
Temperature: -22℉ - +140℉
|
|
Cycle charge and discharge thousands of times, full voltage is 12.6V
|
|
Maximum load output: 12V/10A, peak charging current 6.6A, with aluminum alloy battery waterproof case and voltage display screen, output 12V
|
|
DC interface diameter 0.09 * 0.22inch
|
|
Three
|
All-aluminum waterproof controller: MAX 10A rated current
|
|
Four
|
Paint bracket, anti-corrosion, equipped with U-shaped hoop
|
|
Five
|
Solar panel size: 40.2*26.4*1.2inch
|
|
Six
|
Outer packing size: 42.6*8.3*28.8 inch
|
|
Seven
|
Weight: 25KG
|
|
Eight
|
6 inch ball machine power supply 4-5 days
|
