Parameter
|
|
One
|

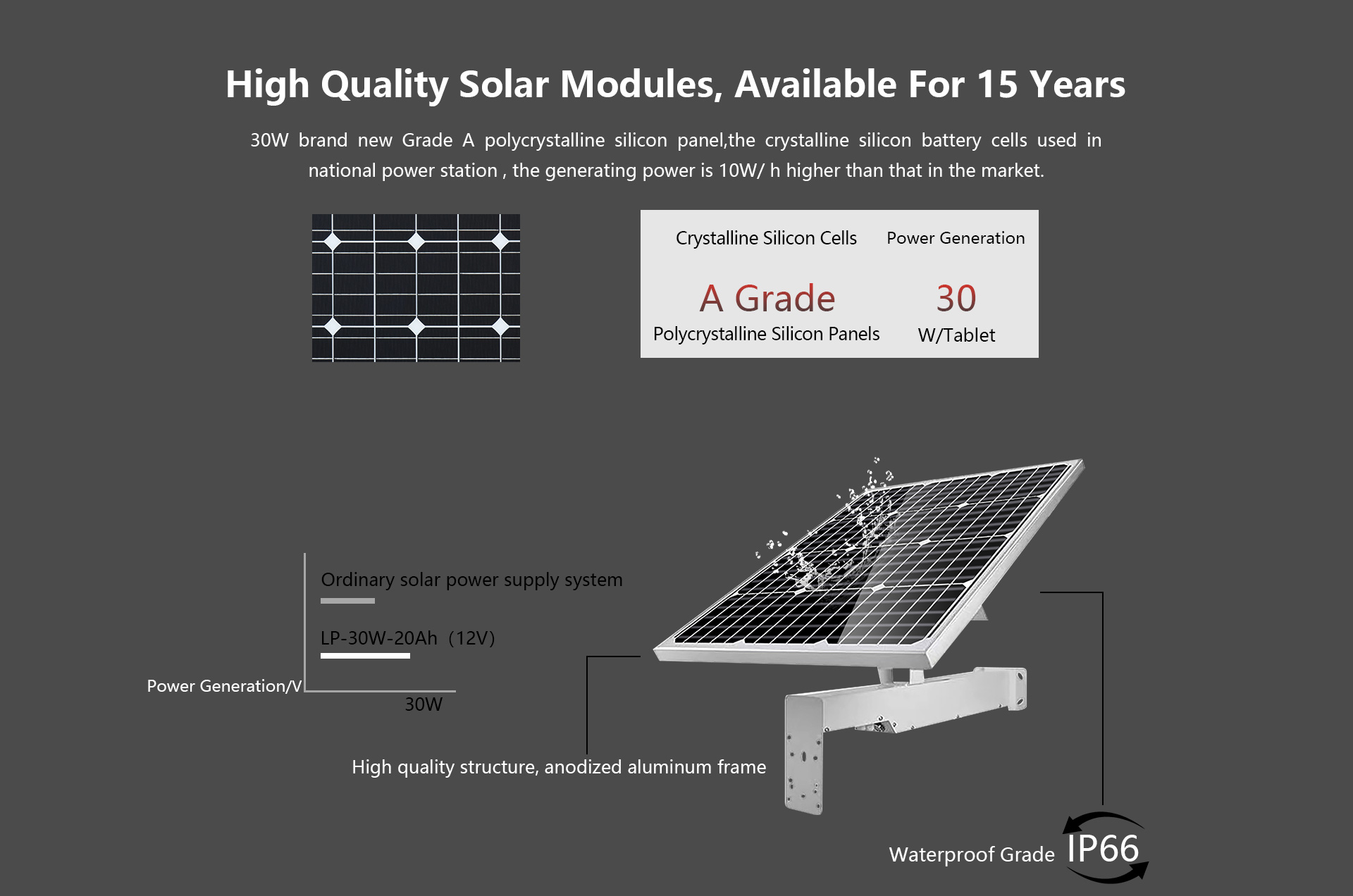

30W full new A-grade polysilicon silicon panel
|
|
Crystalline silicon cells used in national power stations, generating power 10W/h higher than the market, right-angle monocrystalline, peak voltage 18-22V
|
|
Anodized aluminum frame, waterproof rating IP66， 25-year linear power guarantee
|
|
Two
|
Lithium battery: lithium iron phosphate
|
|
Temperature: -22℉ - +140℉
|
|
Cycle charge and discharge thousands of times, full voltage is 12.6V
|
|
Maximum load output: 12V/2A, peak charging current 1.75A, with aluminum alloy battery waterproof case, output 12V
|
|
DC interface diameter 0.09 * 0.22inch
|
|
Three
|

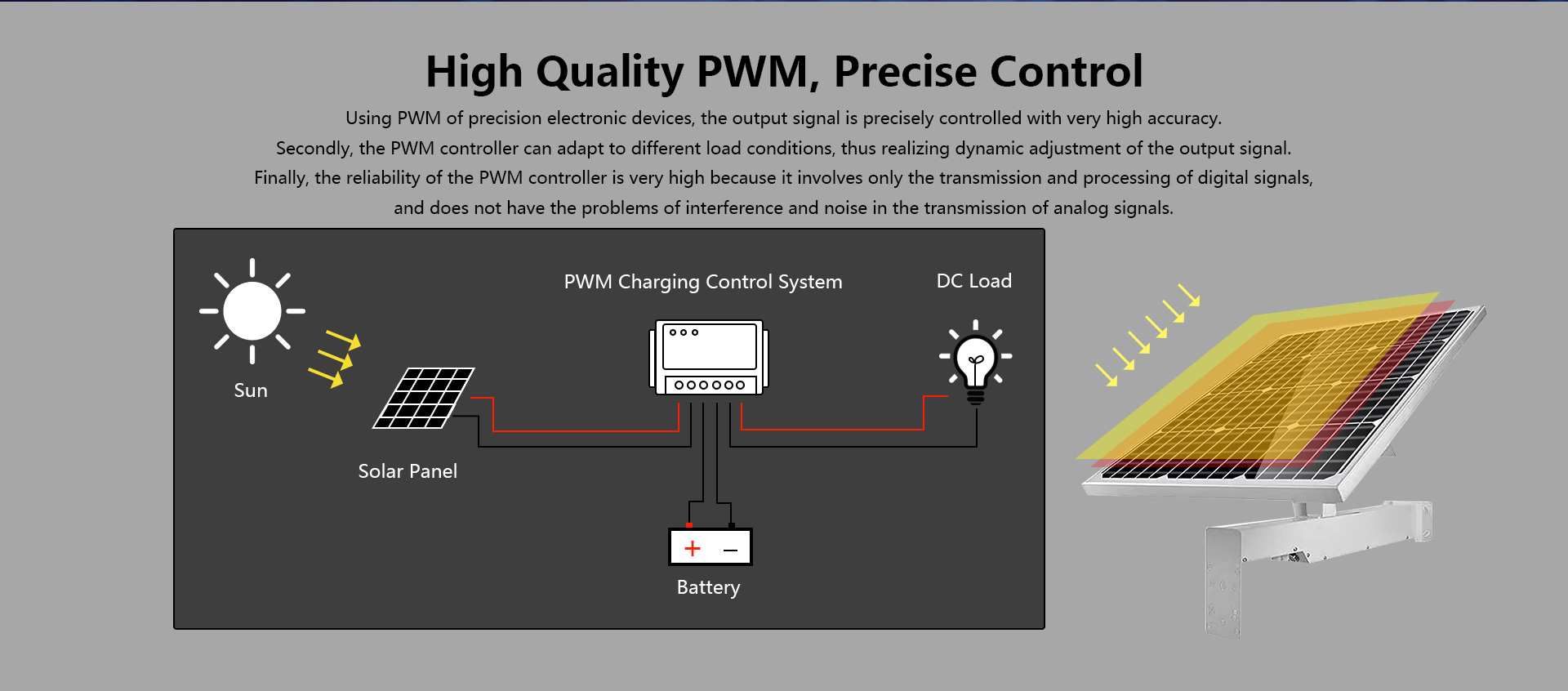

PWM controller: MAX 2A rated current
|
|
Four
|
Paint bracket, anti-corrosion, equipped with U-shaped hoop
|
|
Five
|
Solar panel size: 23.7*13.8*0.8inch
|
|
Six
|
Outer packing size: 26.0*15.8*7.9inch
|
|
Seven
|
Weight: 6KG
|
|
Eight
|
12V ordinary ball machine power supply for 2-3 days
|
