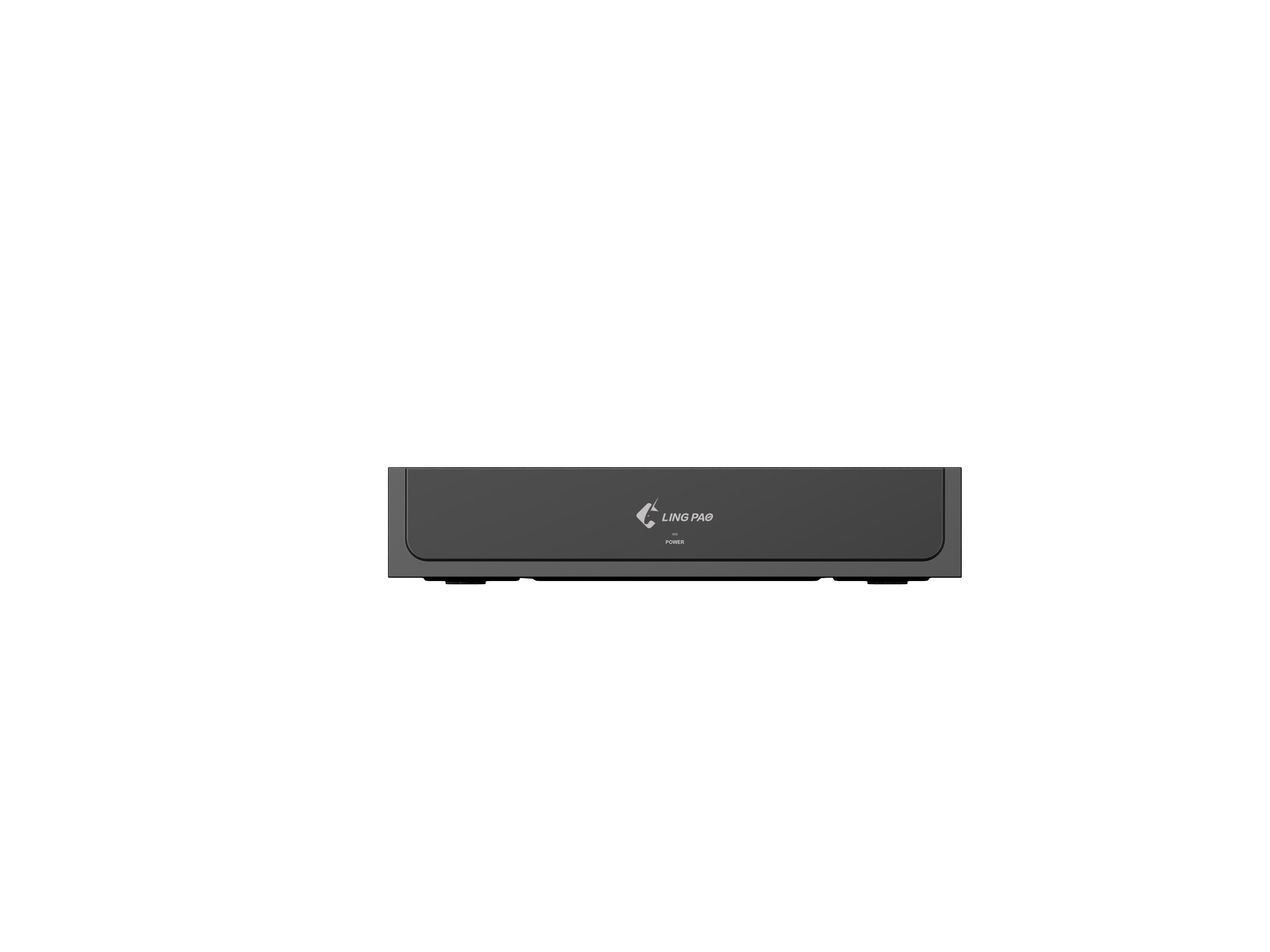

VIGI 12 Channel Network Video Recorder

VIGI 12 Channel Network Video Recorder LP-N112

◆4M pixels, CMOS sensor

◆Linux real-time operating system, real-time control IPC

◆H.265 video coding, H.265, H.264 mixed access

◆ONVIF protocol, interconnection and interoperability of monitoring products

◆ G.711U, G.711A audio compression, real-time monitoring video recording

◆ One-key add, automatically modify IP address

◆ Log, video information query backup

◆AC18 Plus cloud service, remote monitoring by mobile devices

◆VGA, HDMI output video signal at the same time, VGA up to 1080P output; HDMI up to 4K output

◆Preview, storage and playback of 12MP HD network video

◆ HDMI and AUX (0.14inch) audio output

◆ 1 channel 12MP/8MP; 4 channels 4MP simultaneous preview and playback

◆ Hard disk compatibility is fully improved, maximum 8T hard disk access

1. Embedded Linux real-time operating system to achieve centralized management of IPC, centralized preview, centralized video recording, alarm and other practical functions;

2. Support H.265 video coding stream, support H.265, H.264 devices mixed access;

3. Support ONVIF protocol to ensure interoperability of network video surveillance products;

4. Support G.711U, G.711A audio compression, realizing real-time monitoring of video recordings;

5. Support AC18 Plus cloud service, support cell phone, tablet PC and other mobile devices for remote monitoring;

6. Support VGA and HDMI interface output video signal at the same time (same source), VGA up to 1080P output; HDMI up to 4K output;

7. Support 12MP pixel HD network video preview, storage and playback;

8. Support HDMI and AUX (3.5mm) audio output;

9. Support 1 channel 12MP/8MP; 4 channels 4MP preview and playback at the same time;

10. Comprehensively improve hard disk compatibility, the maximum 8T hard disk access;

Video and audio input	Video input	12 channels
Video and audio input	Access bandwidth	64M
Video and audio output	HDMI output	1 channel,resolution：3840×2160、2560×1440、1920×1080、
	HDMI output	1440×900、1280×1024、1280×720、1024×768
	VGA optput	1 channel，resolution：1920×1080、1440×900、1280×1024、
	VGA optput	1280×720、1024×768
	Audio output	2 channels，HDMI/AUX port (0.14inch)
Video and audio codec parameters	Video resolution	8 channels 12MP/8MP、12 channels 5MP/4MP/3MP/1080P/720P
	Synchronous playback	Instant replay, regular replay, intelligent replay
	Synchronous playback	1 channel 12MP/8MP/ 4 channels 4MP
Video recording management	Backup mode	Regular backup, video clip backup
Hard disk drive	Type	1 SATA port
Hard disk drive	MAX capacity	Supports up to 8TB hard disk
External interface	Voice output	1 HDMI、AUX（0.14inch）
	network interface	1 RJ45 10M/100M adaptive ethernet
	USB interface	2 USB2.0
Network management	Network protocol	Support TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P and other network protocols.
Other	Power source	DC12V 2A（External adapter）
	Power consumption (excluding hard disk)	≤3W
	Operating temperature	14℉～＋131℉
	Operating humidity	10%～90%;
Product size	9.98.31.6（inch）
Package Size	11.511.03.0（inch）
