Industrial 100M Fiber Optic Transceiver

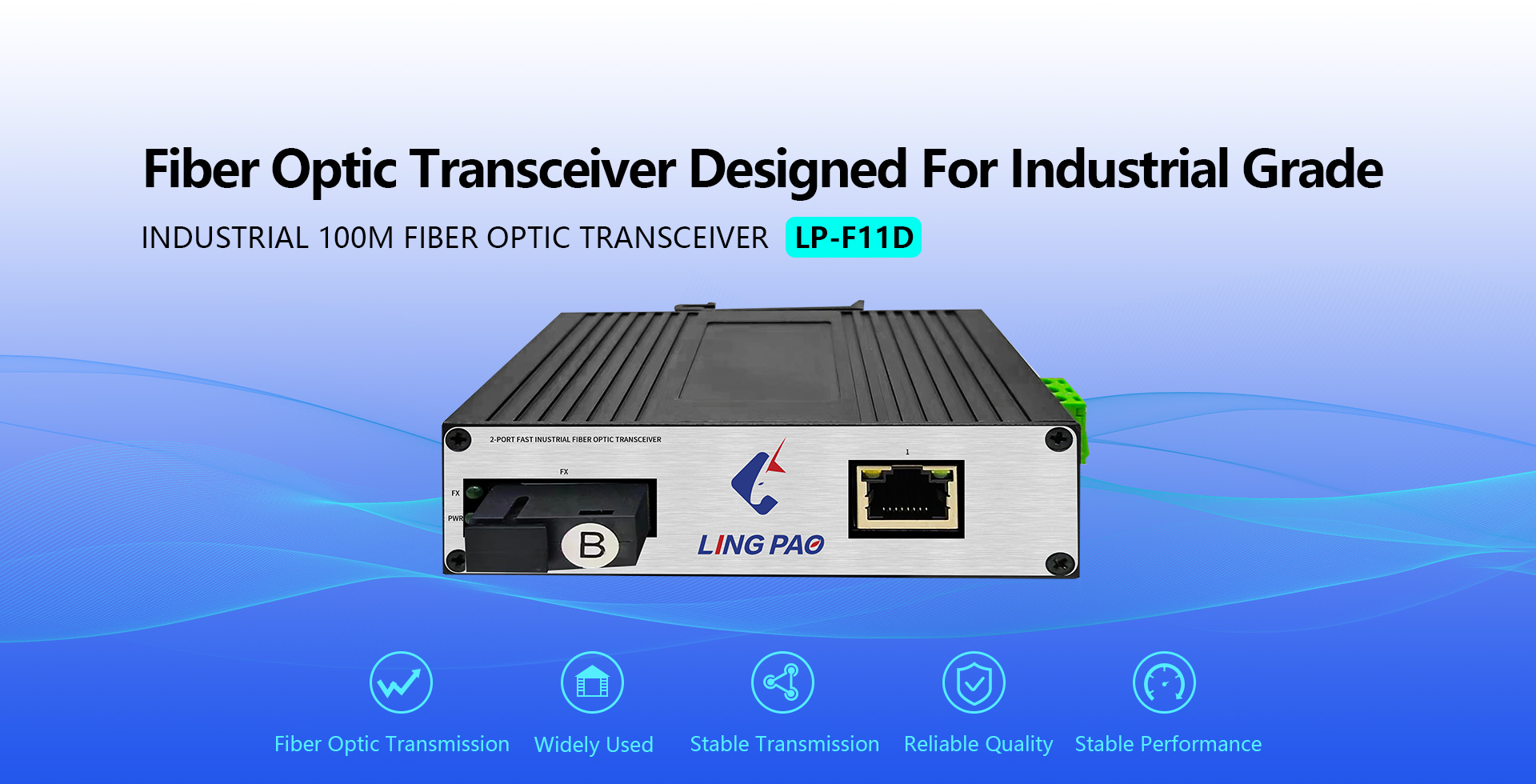

Industrial 100M Fiber Optic Transceiver LP-F11D
◆Fiber optic transmission with low loss and long transmission distance

◆Wide temperature operation -22℉~158℉

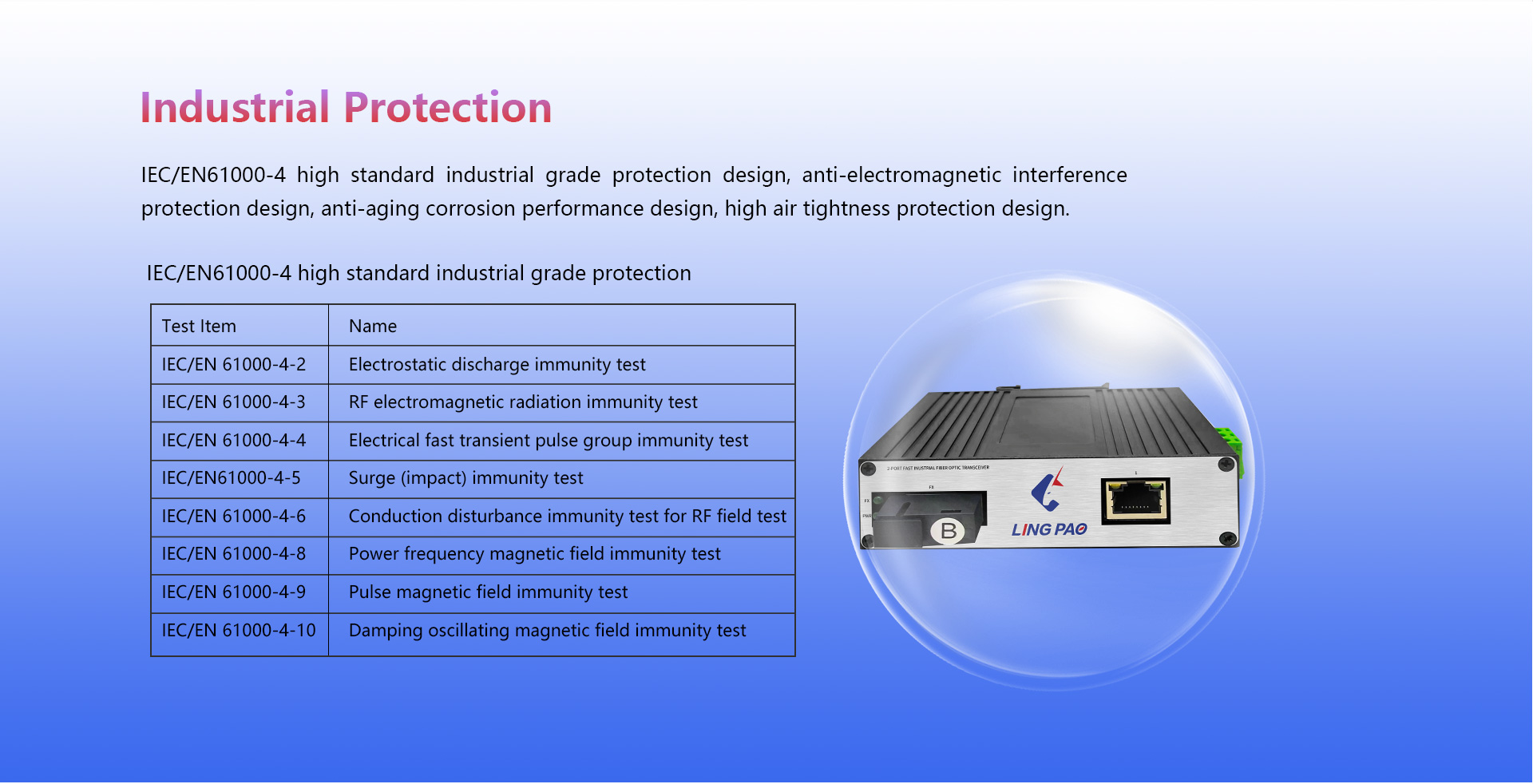

◆Industrial protection

◆12~57V wide voltage input, tight protection, reliable power supply.

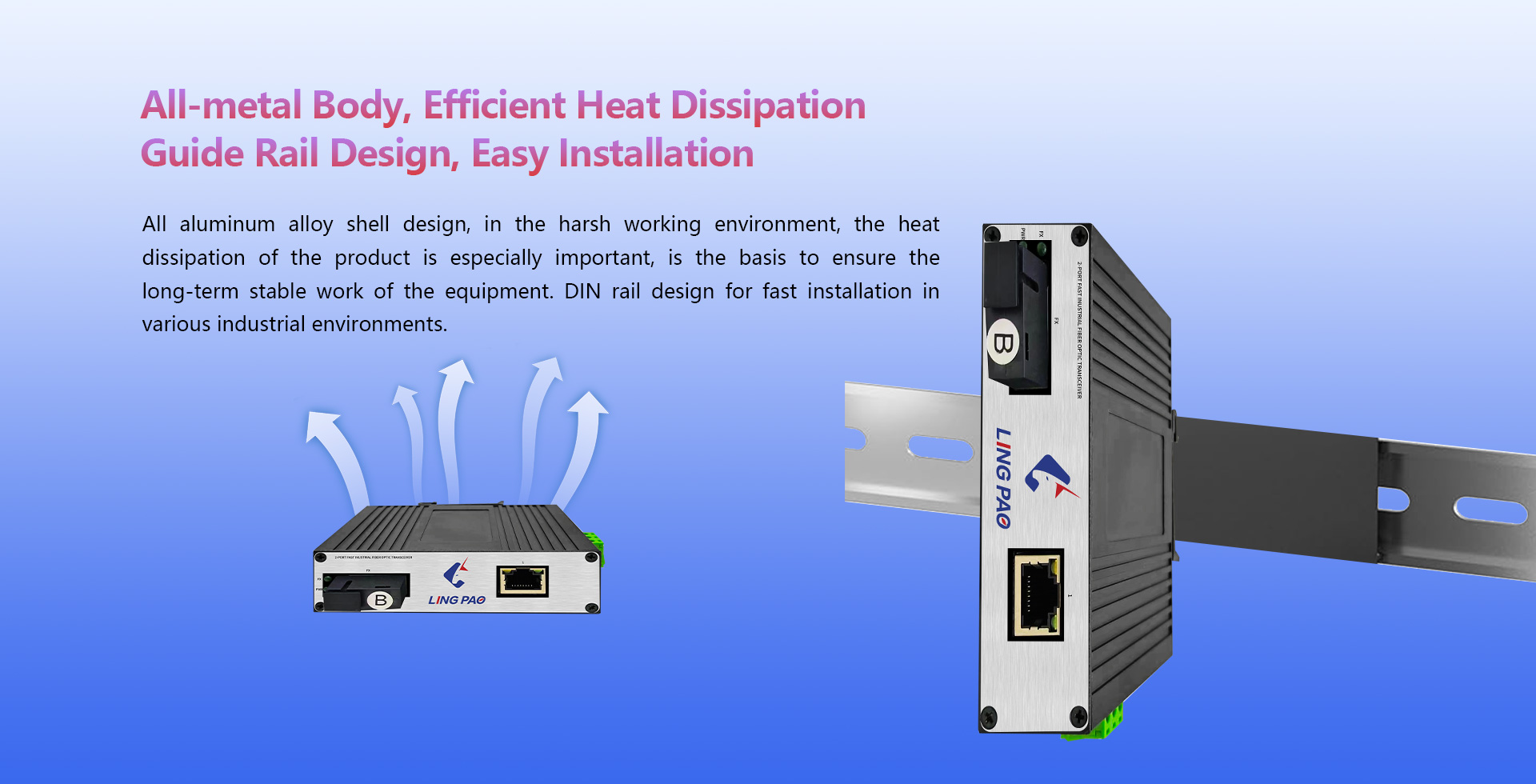

◆All-metal body, efficient heat dissipation.Guide rail design, easy installation.

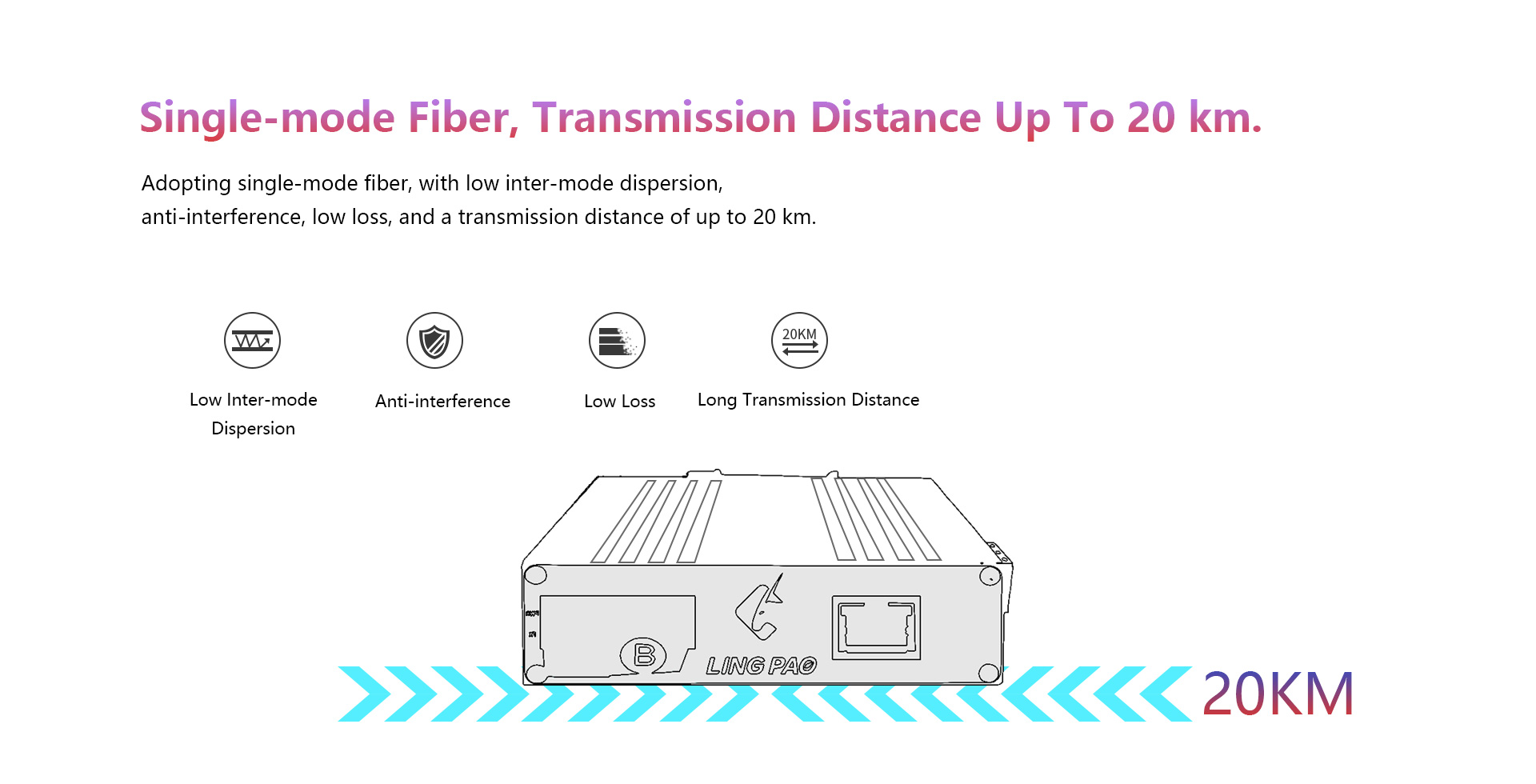

◆Single-mode fiber, transmission distance of up to 20 kilometers.

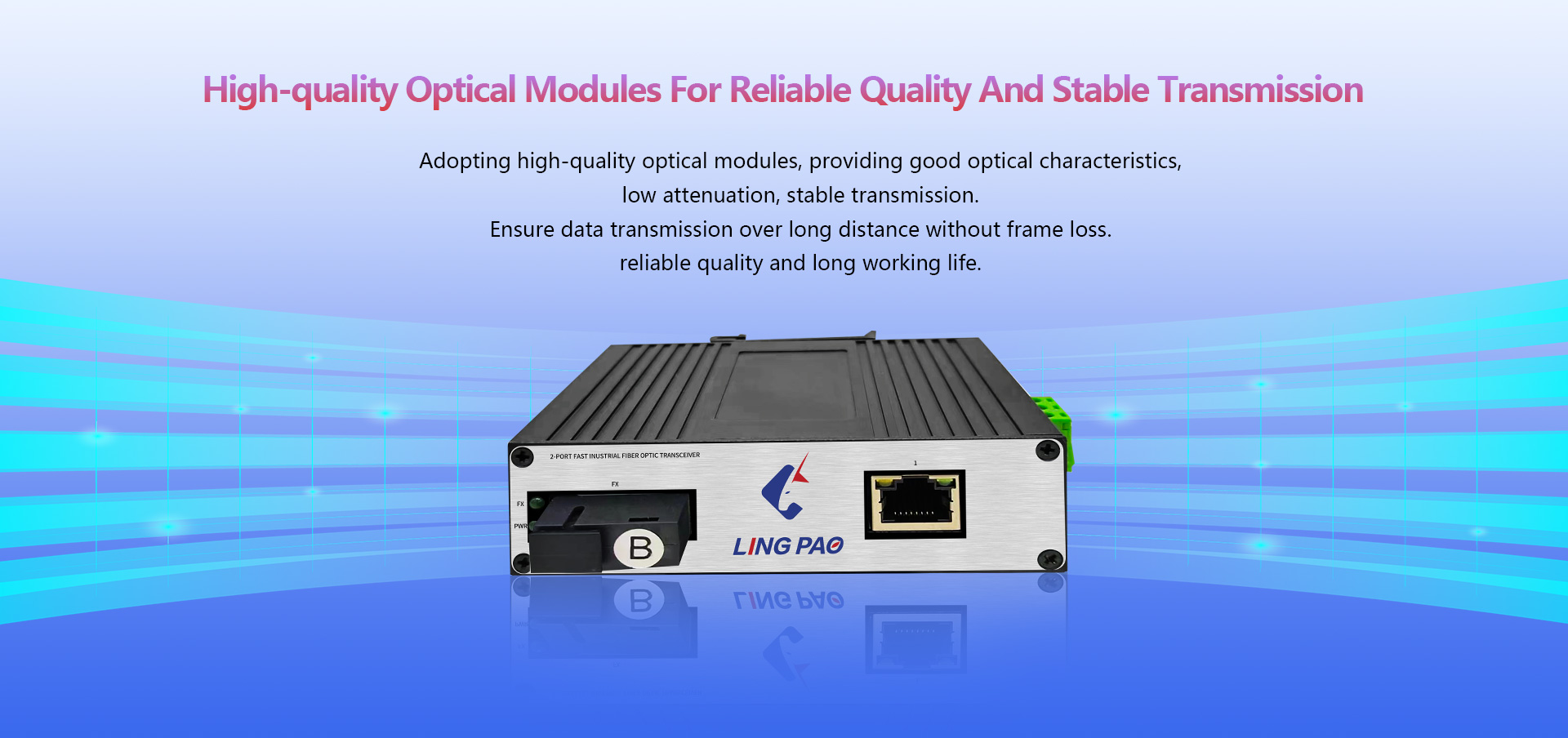

◆High-quality optical modules, reliable quality，stable transmission

Technical standard	IEEE 802.3 、EEE 802.3i、IEEE 802.3u
Port	One 100M RJ45 ports
Port	One 100M SC fiber port
Power source	DC12V~57V power supply
Transmission distance	20KM
Dimension	4.1inch x3.1inch x 1.3inch
Pilot lamp	LINK/ACT (Connect/receive) indicator, Power (power) indicator
Installation	Rail type
operating environment	Operating temperature: Wide temperature-22℉ to 158℉
	Storage temperature: -40℉ to 158℉
	Operating humidity: 10% to 90%RH non-condensing
	Storage humidity: 5% to 90%RH non-condensing
