100M Fiber Optic Transceiver

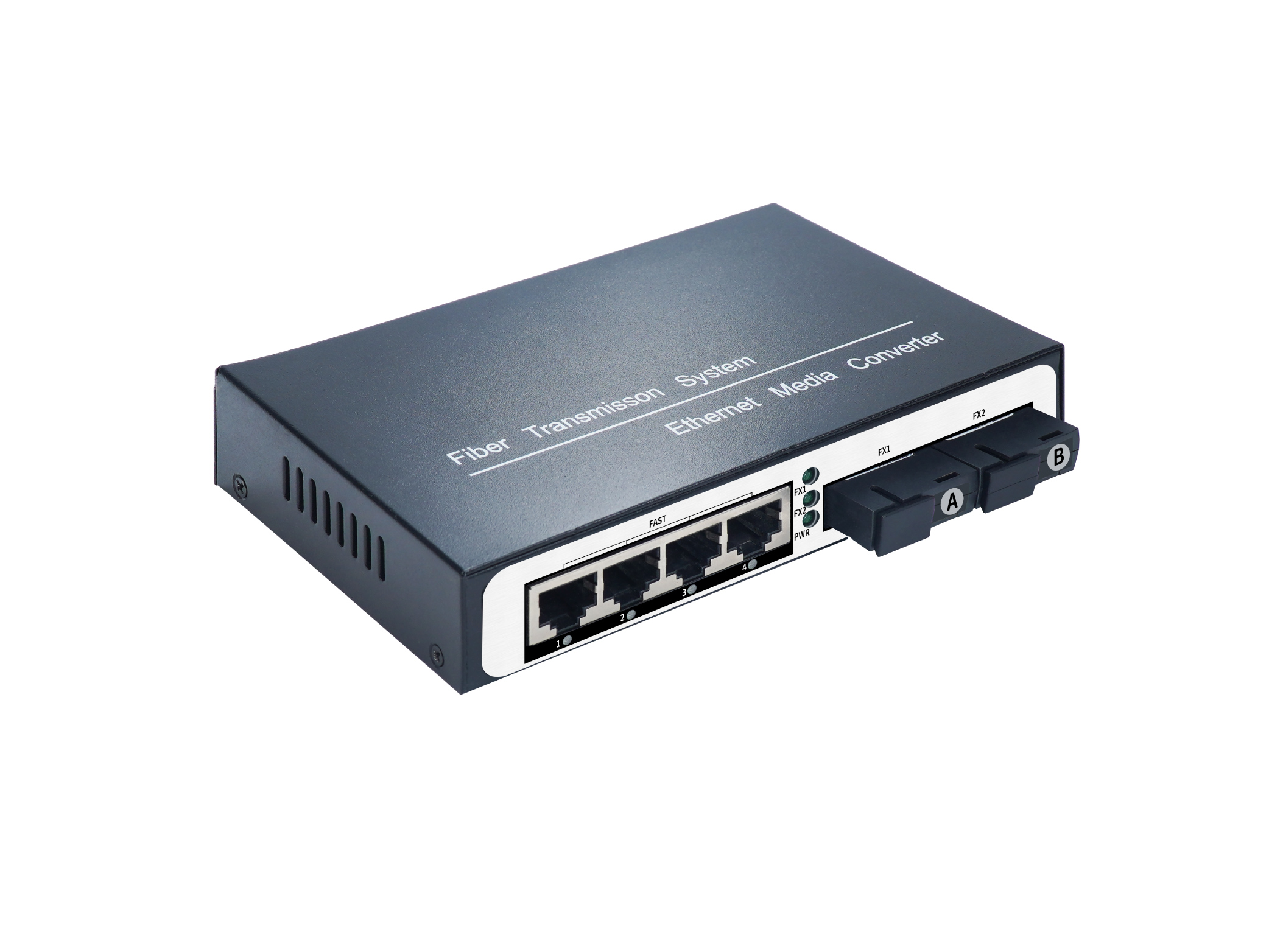

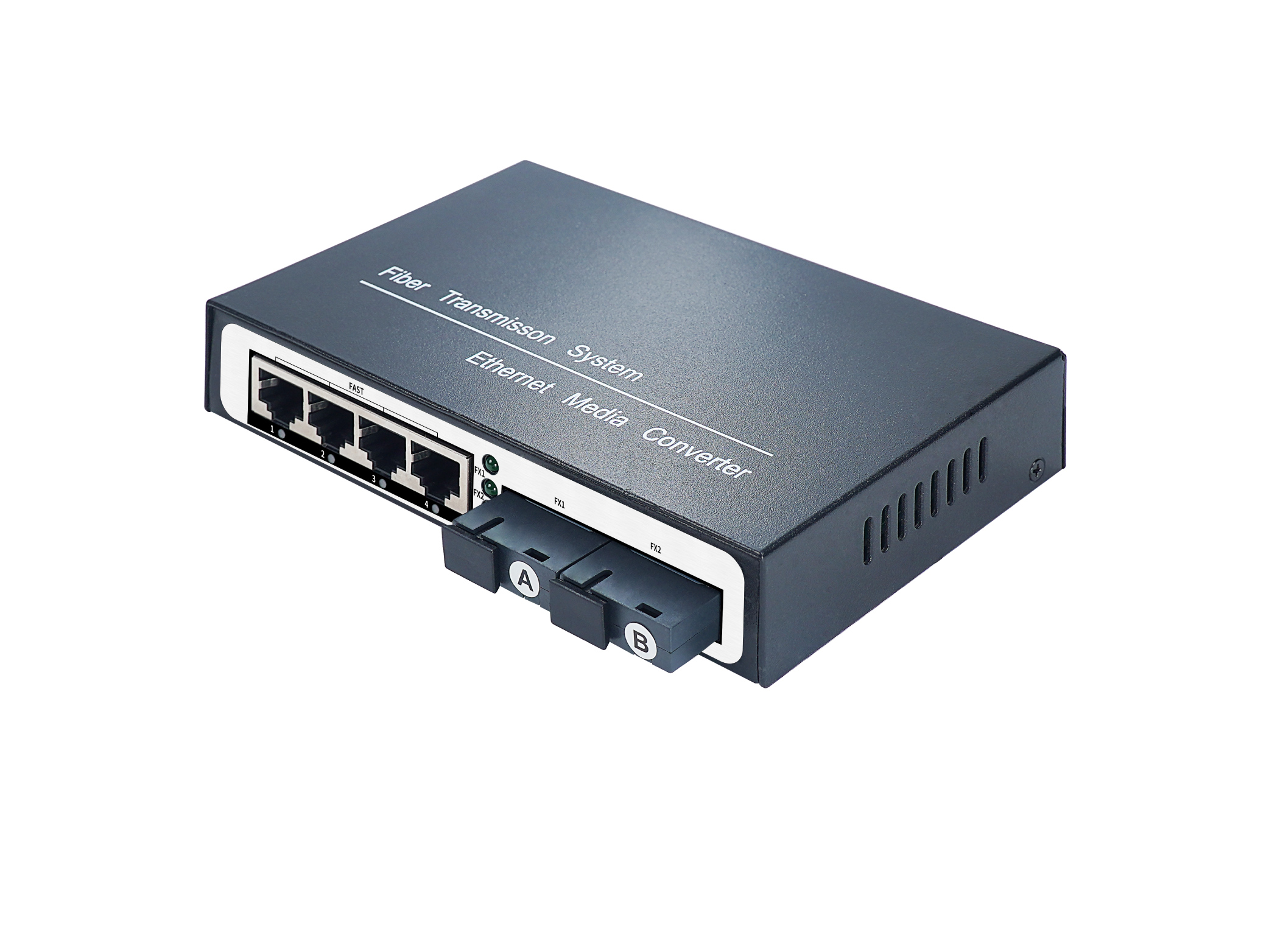

100M Fiber Optic Transceiver LP-F24

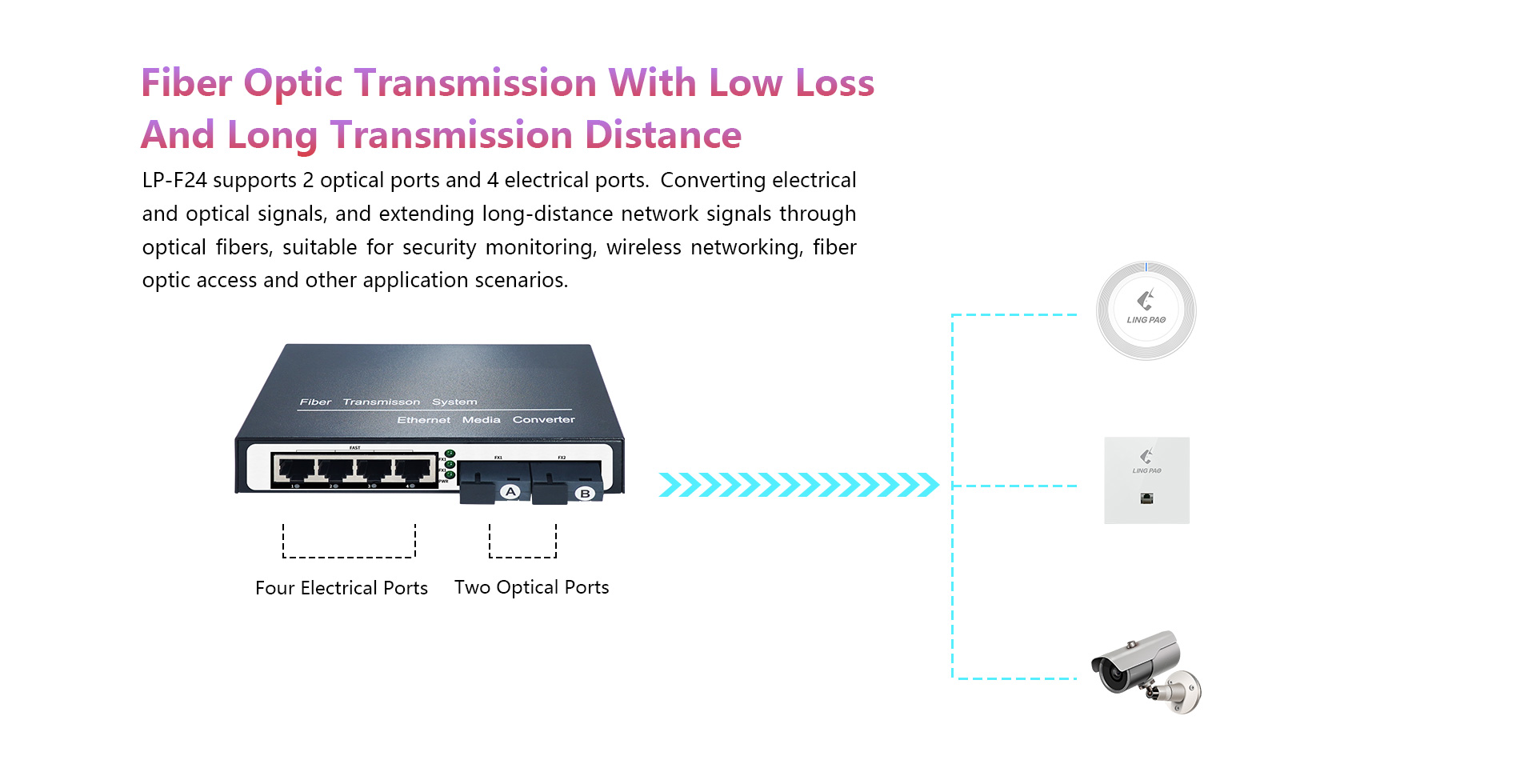

◆Fiber optic transmission with low loss and long transmission distance

◆Wavelength division multiplexing, single fiber transceiver, saves over half of wiring costs

◆Single-mode fiber, transmission distance up to 20 km.

◆High-quality optical modules for reliable quality and stable transmission

Technical standard	IEEE 802.3 、EEE 802.3i、IEEE 802.3u
Port	Four 100M RJ45 ports
Port	Two 100M SC fiber port

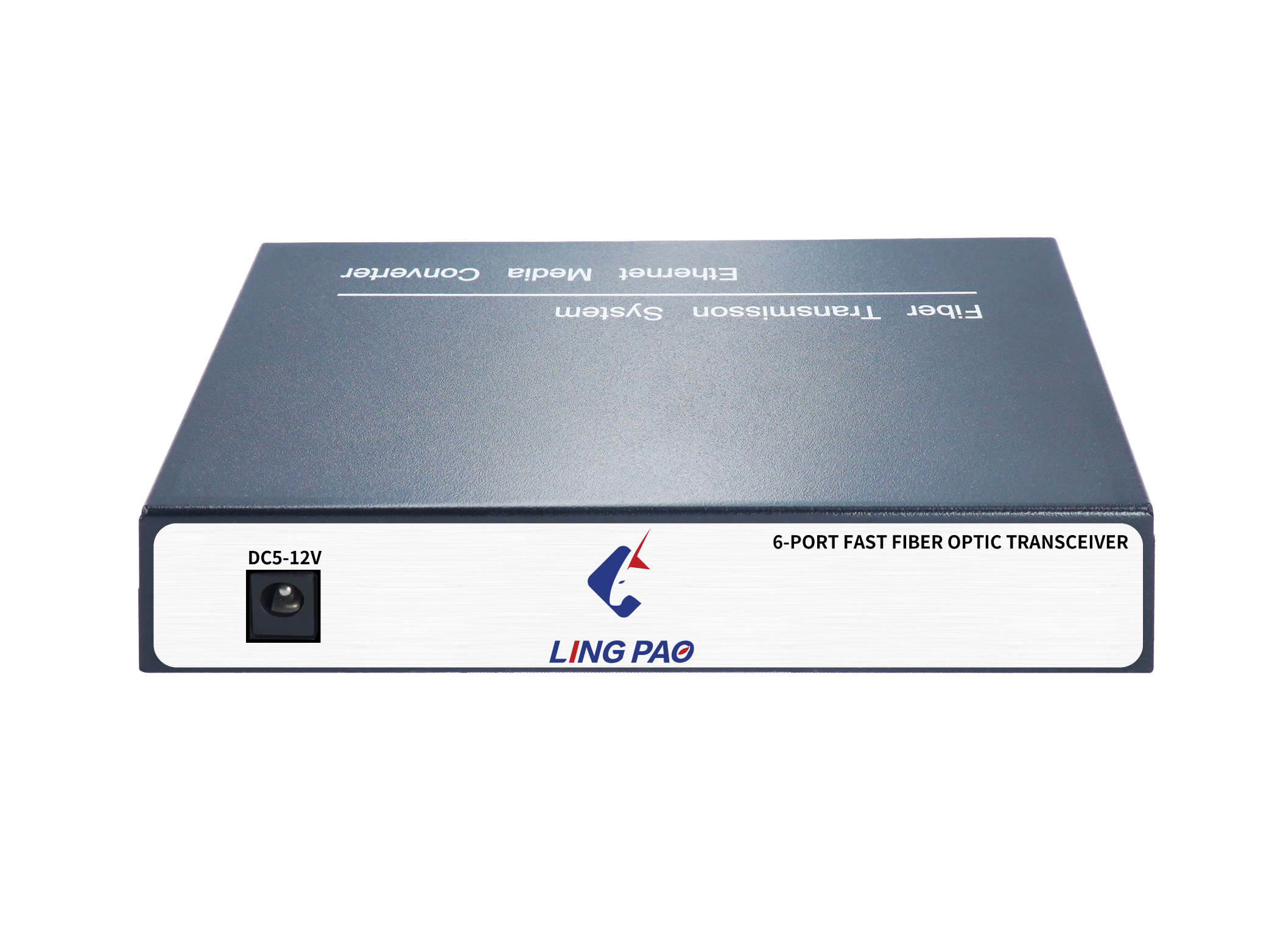

Power source	DC5V~12V
Transmission distance	20KM
Dimension	5.6inch x3.7inch x 1.1inch
Pilot lamp	LINK/ACT (Connect/receive) indicator, Power (power) indicator
operating environment	Operating temperature: 14℉ to 158℉
	Storage temperature: -40℉ to 158℉
	Operating humidity: 10% to 90%RH non-condensing
	Storage humidity: 5% to 90%RH non-condensing
