2.4G High Power Wireless Bridge

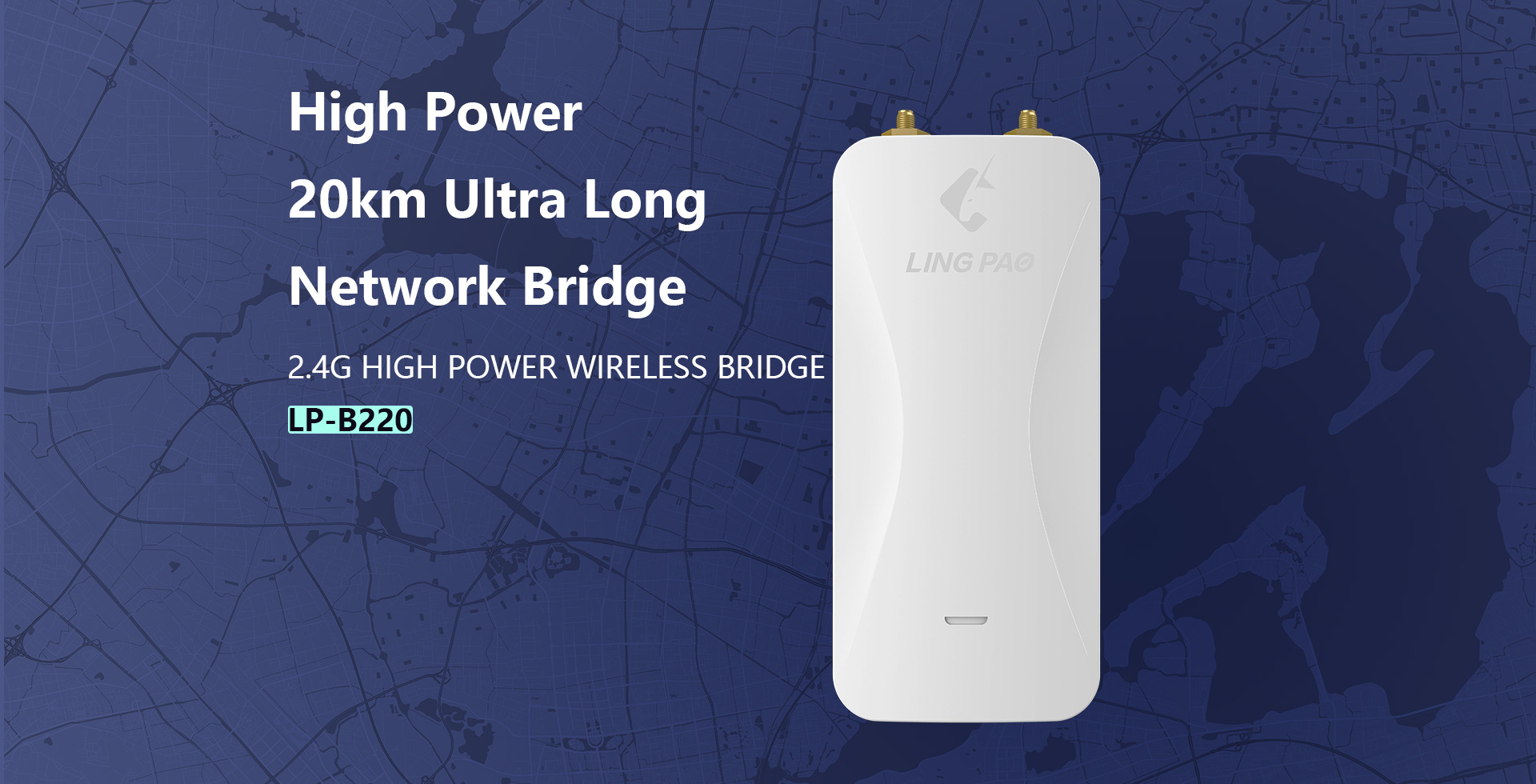

2.4G High Power Wireless Bridge LP-B220
◆Outdoor long-distance network, professional point-to-point transmission

◆20 km stable high-speed transmission

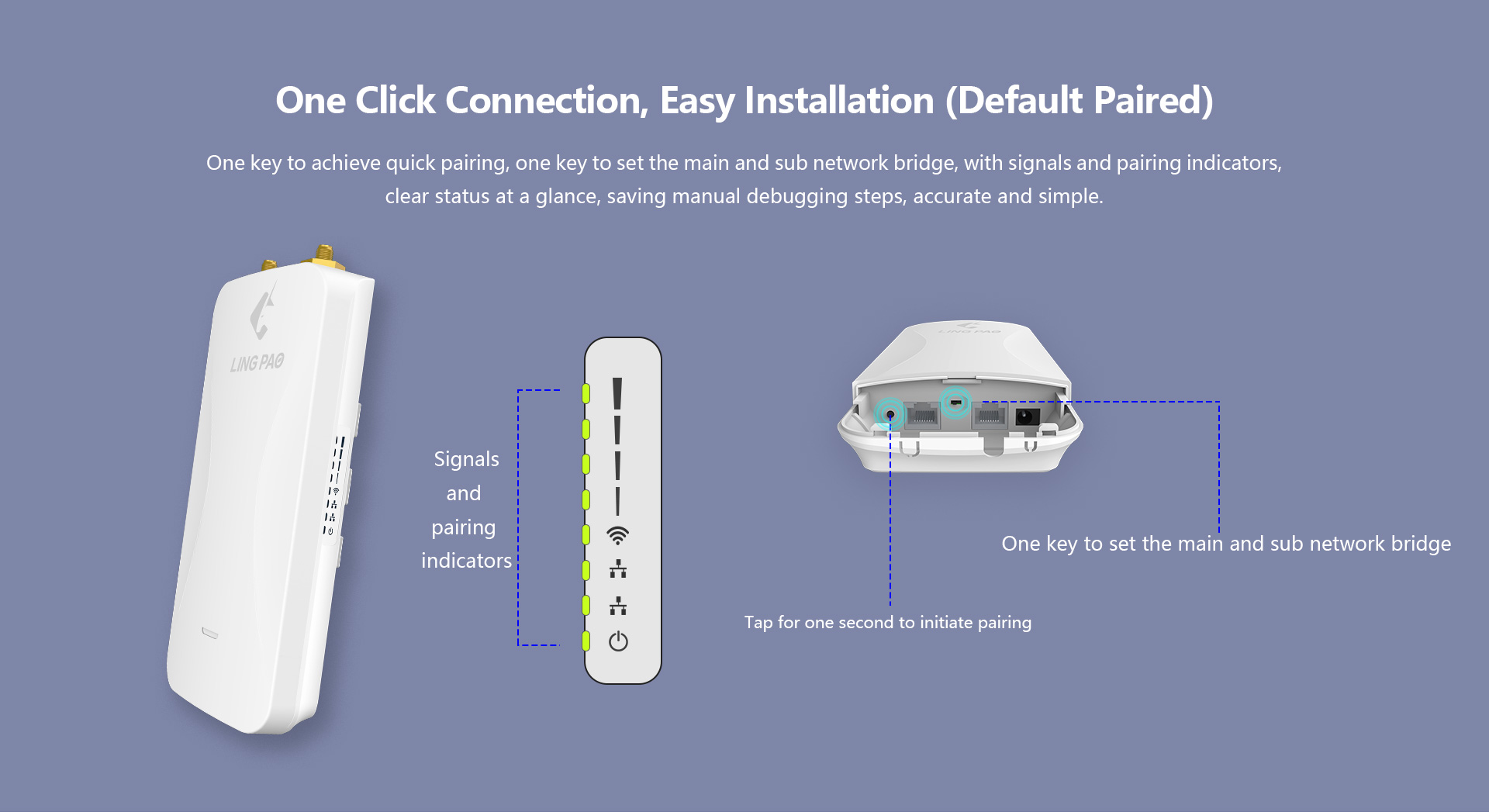

◆One click connection, easy installation (default paired)

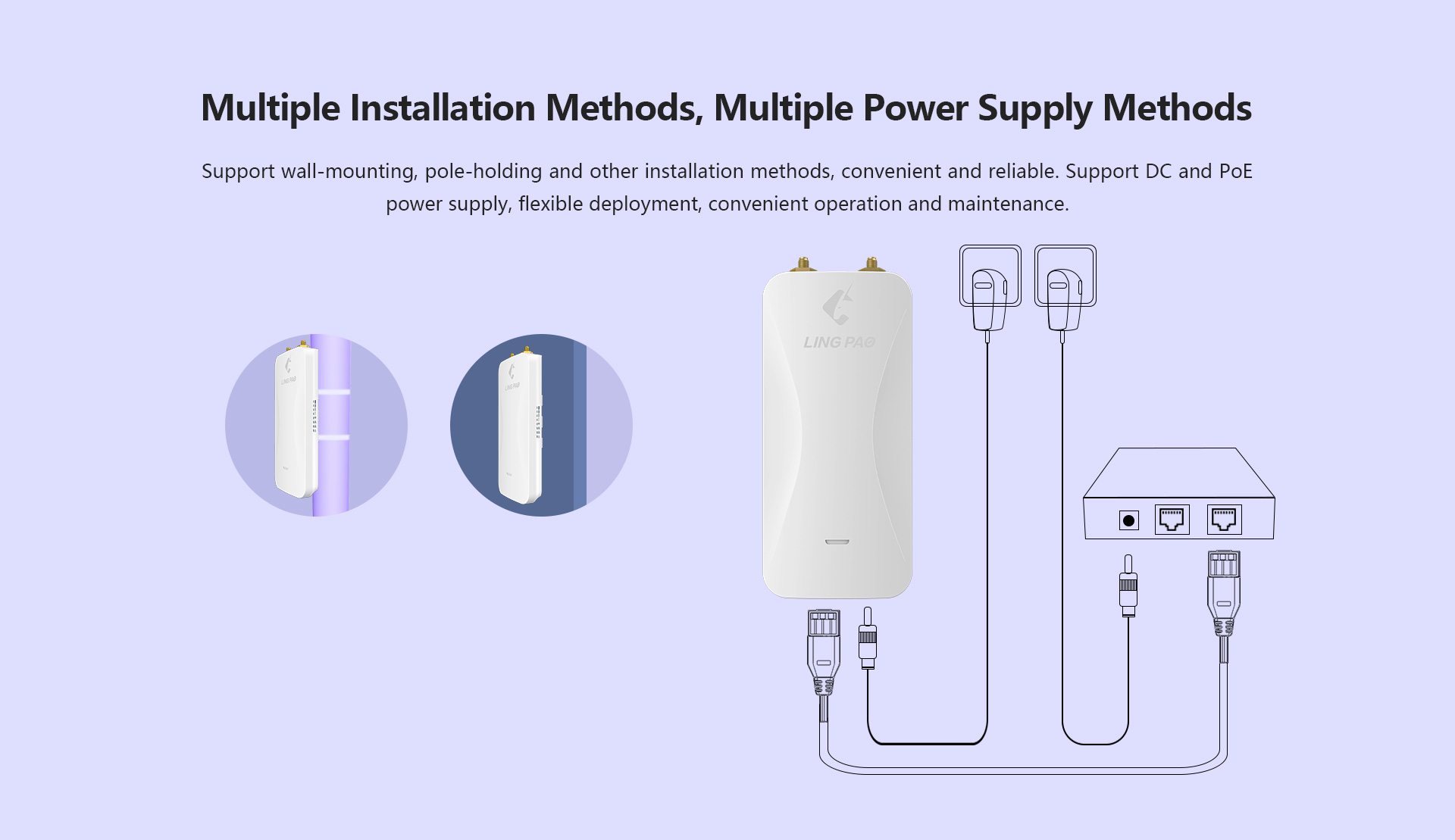

◆Multiple installation methods, multiple power supply methods

Parameter
CPU	AR9344
Flash	16MB
DDR	64MB
5G operating band	5.150GHz∽5.850GHz
2.4G WIFI transmission protocol	802.11 a / n
antenna	Device leads to 2 SMA connectors (external pattern with internal pins) for external antennas
Maximum speed	300Mbps
5G wireless power	802.11a	54M	22±2dBm	6M	23±2dBm
	802.11n HT20	MCS7	21±2dBm	MCS0	23±2dBm
	802.11n HT40	MCS7	20±2dBm	MCS0	22±2dBm
	802.11a	54M	-70dBm	6M	-83dBm
5G receiving sensitivity	802.11n HT20	MCS7	-67dBm	MCS0	-83dBm
	802.11n HT40	MCS7	-64dBm	MCS0	-83dBm
5G EVM	802.11a_54M: ≤-25 dB；802.11n_MCS7: ≤-28 dB；
Frequency offset (ppm)	±20ppm
Interface (WAN)	One 10/100M adaptive WAN port, supporting 24V POE power supply
Interface (LAN)	One 10/100M adaptive LAN port.
RST key	reset key (long press for 6~10 seconds to restore factory default configuration)
Status light	SYS light, WAN port light, LAN port light, 5G WIFI light, four signal light
Power supply	PoE 24V _0.5A，DC 12V _1A
MAX power consumption	< 8W
Product size	7.83.41.6inch
Weight	0.4kg
Operating environment	Normal operating temperature :-4℉∽158℉
	Storage temperature: -40℉∽158℉
	Humidity: 5% to 95% (non-condensing)
Protection grade	IP65
ESD	Air discharge +/-8K, contact discharge +/-4K
surge	Common mode 4K, difference mode 2K
