Parameter
|
|
CPU
|
MT7628DAN
|
|
Flash
|
8M
|
|
DDR2
|
64M
|
|
2.4G operating band
|
2.412 GHz∽2.484GHz
|
|
2.4G WIFI transmission protocol
|
802.11 b / g / n
|
|
Built-in antenna 2.4G
|
2.4G directional flat antenna, gain: 8dBi
|
|
Maximum speed
|
300Mbps
|
|
2.4G wireless power
|
802.11b
|
11M
|
18±2dBm
|
1M
|
21±2dBm
|
|
802.11g
|
54M
|
17±2dBm
|
6M
|
20±2dBm
|
|
802.11n HT20
|
MCS7
|
16±2dBm
|
MCS0
|
19±2dBm
|
|
802.11n HT40
|
MCS7
|
15±2dBm
|
MCS0
|
18±2dBm
|
|
2.4G receiving sensitivity
|
802.11b
|
11M
|
-85dBm
|
1M
|
-94dBm
|
|
802.11g
|
54M
|
-72dBm
|
6M
|
-88dBm
|
|
802.11n HT20
|
MCS7
|
-68dBm
|
MCS0
|
-86dBm
|
|
802.11n HT40
|
MCS7
|
-66dBm
|
MCS0
|
-85dBm
|
|
2.4G EVM
|
802.11b: ≤-10 dB ；802.11g: ≤-25 dB ；802.11n: ≤-28dB
|
|
Frequency offset (ppm)
|
±20ppm
|
|
Interface (WAN)
|
One 10/100M adaptive WAN port, supporting POE power supply
|
|
Interface (LAN)
|
One 10/100M adaptive LAN port.
|
|

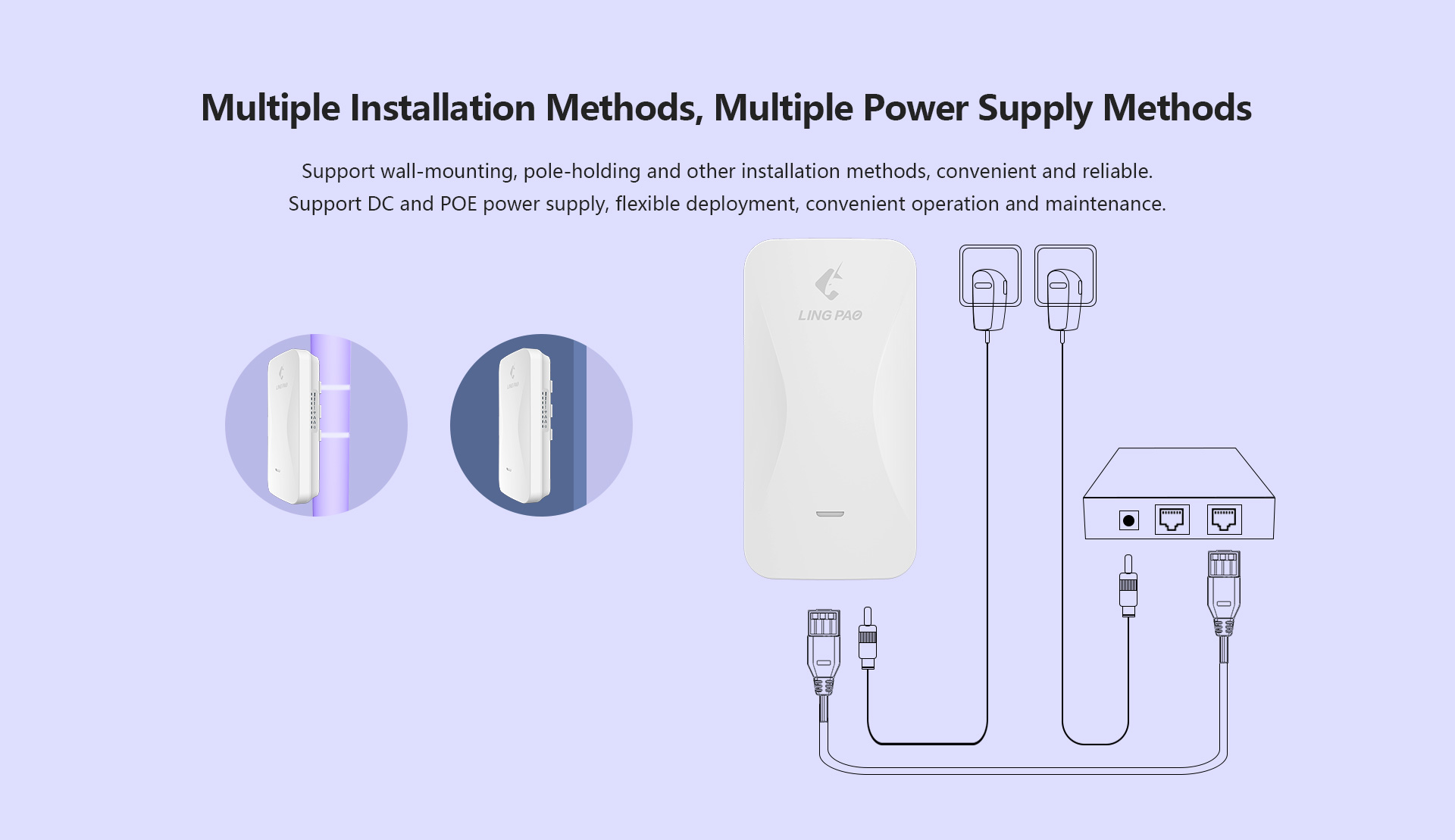

Power supply
|
PoE 24V _0.5A，DC 12V _1A
|
|
MAX power consumption
|
< 5W
|
|

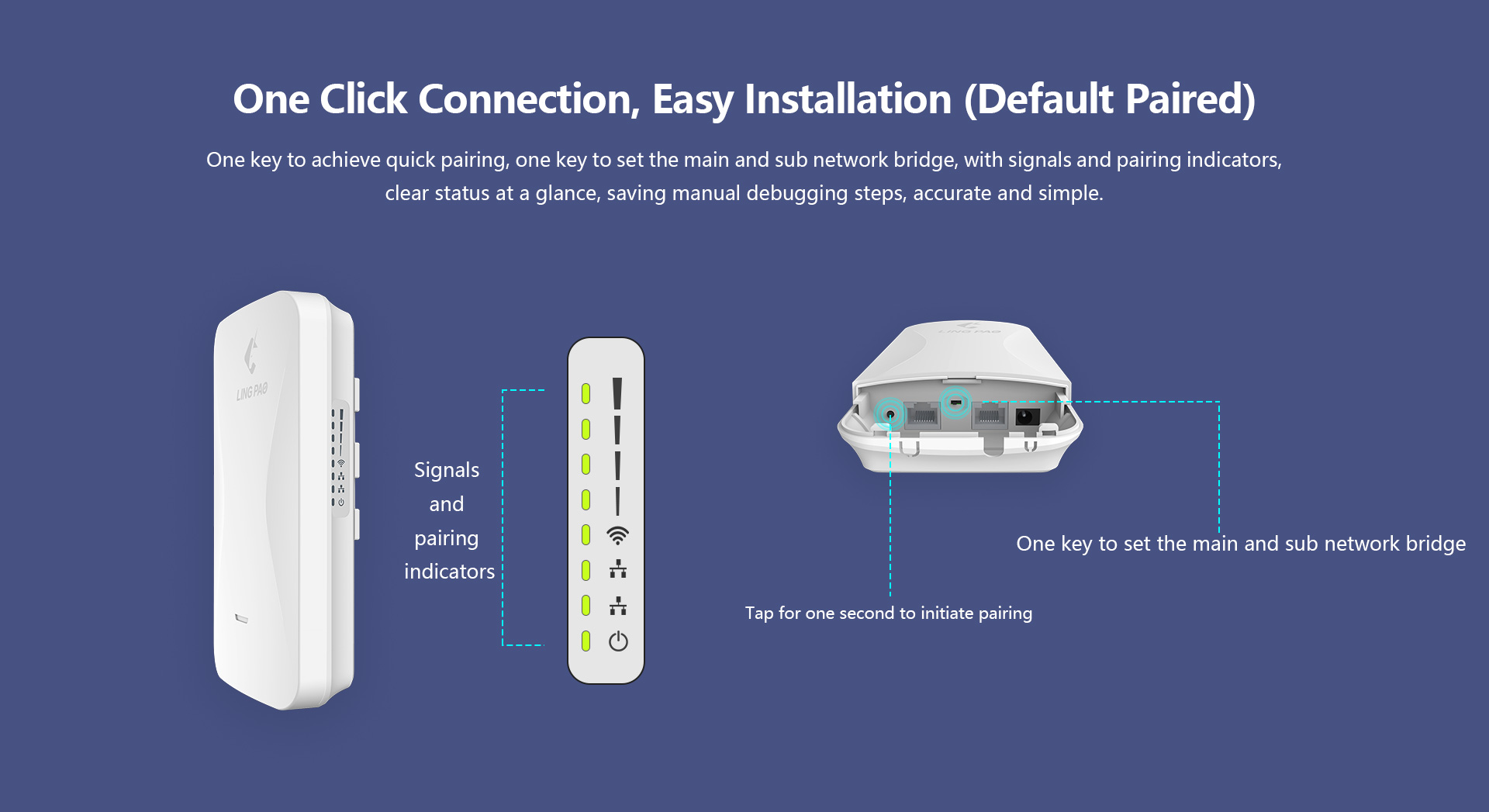

RST key
|
Long press 10 seconds to restore factory default configuration, short press 1 second to initiate pairing
|
|
Slide switch
|
Set the master/slave mode with one click
|
|
Status light
|
SYS light, WAN port light, LAN port light, 5G WIFI light, four signal light
|
|
Product size
|
6.7*3.4*1.6inch
|
|
Weight
|
0.5kg
|
|
Operating environment
|
Normal operating temperature :-4℉∽131℉
|
|
Storage temperature: -40℉∽158℉
|
|
Humidity: 5% to 95% (non-condensing)
|
|
Protection grade
|
IP65
|
|
ESD
|
Air discharge +/-8K, contact discharge +/-4K
|
|
surge
|
Common mode 2K, difference mode 1K
|
