Parameter
|
|
CPU
|
MT7628DAN+MT7613AE
|
|
Flash
|
8MB
|
|
DDR
|
64MB
|
|
5G operating band
|
5.150GHz∽5.850GHz
|
|
2.4G WIFI transmission protocol
|
802.11 a / n /ac
|
|
Maximum speed
|
900Mbps
|
|
antenna
|
5.8G directional flat antenna, gain: 12dBi
|
|
5G wireless power
|
802.11a
|
54M
|
17±2dBm
|
6M
|
19±2dBm
|
|
802.11n HT20
|
MCS7
|
16±2dBm
|
MCS0
|
18±2dBm
|
|
802.11n HT40
|
MCS7
|
15±2dBm
|
MCS0
|
17±2dBm
|
|
802.11AC
|
MCS9
|
14±2dBm
|
MCS0
|
16±2dBm
|
|
5G receiving sensitivity
|
802.11a
|
54M
|
-68dBm
|
6M
|
-86dBm
|
|
802.11n HT20
|
MCS7
|
-68dBm
|
MCS0
|
-86dBm
|
|
802.11n HT40
|
MCS7
|
-65dBm
|
MCS0
|
-83dBm
|
|
802.11AC
|
MCS9
|
-55dBm
|
MCS0
|
-73dBm
|
|
5G EVM
|
802.11a_54M: ≤-25 dB；802.11n_MCS7: ≤-28 dB；802.11AC_MCS9:≤-32dB
|
|
Frequency offset (ppm)
|
±20ppm
|
|
Interface (WAN)
|

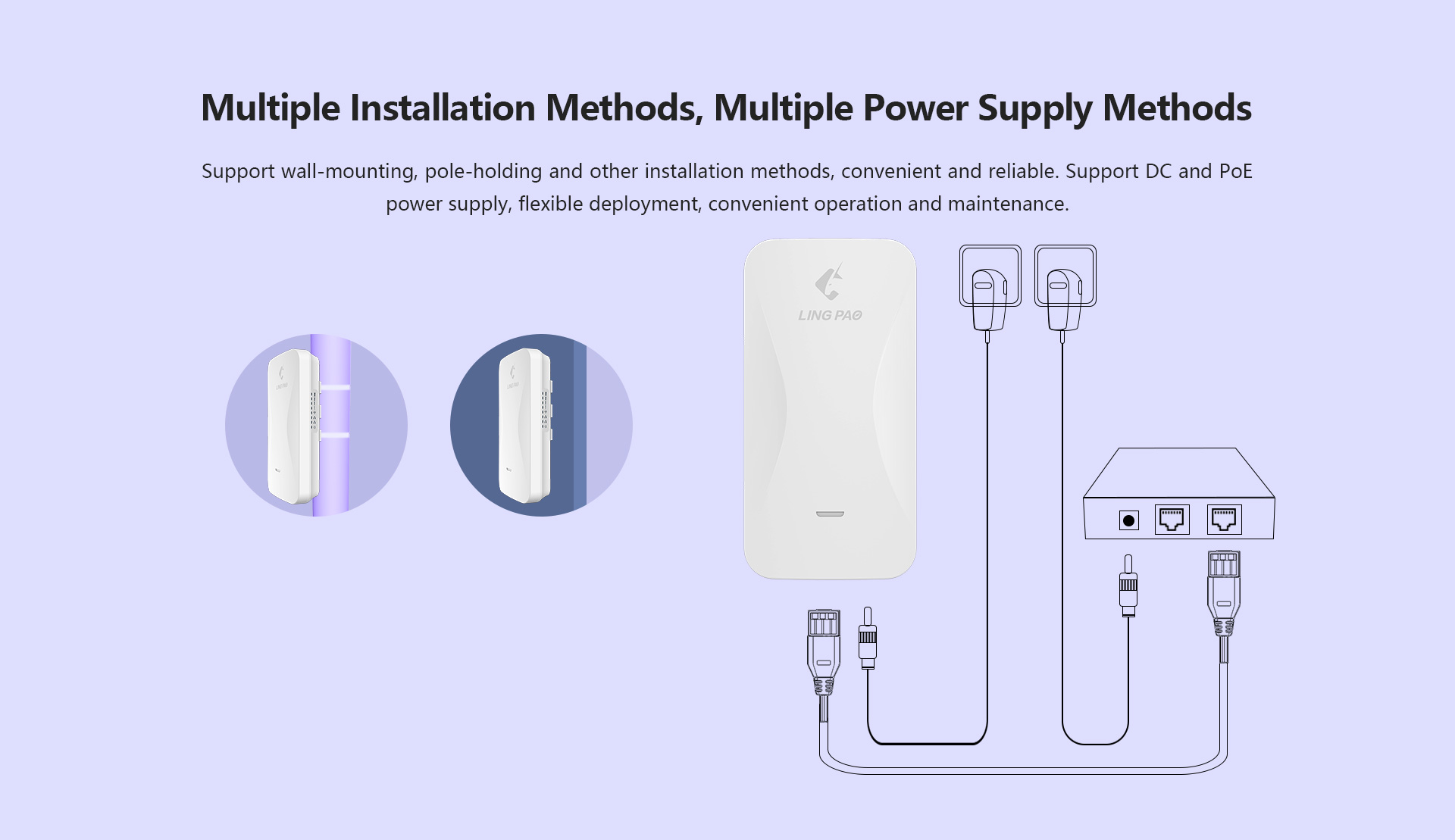

One 10/100M adaptive WAN port, supporting 24V POE power supply
|
|
Interface (LAN)
|
One 10/100M adaptive LAN port.
|
|
Power supply
|
PoE 24V _0.5A，DC 12V _1A
|
|
MAX power consumption
|
< 5W
|
|
RST key
|
Long press 10 seconds to restore factory default configuration, short press 1 second to initiate pairing
|
|
Slide switch
|
Set the master/slave mode with one click
|
|
Status light
|
SYS light, WAN port light, LAN port light, 5G WIFI light, four signal light
|
|
Product size
|
6.7*3.4*1.6inch
|
|
Weight
|
0.5kg
|
|
Operating environment
|
Normal operating temperature :-4℉∽131℉
|
|
Storage temperature: -40℉∽158℉
|
|
Humidity: 5% to 95% (non-condensing)
|
|
Protection grade
|
IP65
|
|
ESD
|
Air discharge +/-8K, contact discharge +/-4K
|
|
surge
|
Common mode 2K, difference mode 1K
|
