Hardware specification
|
|
Random access memory
|
512MB DDR
|
|
Flash memory
|
128MB Nand FLASH
|
|
Maximum power consumption
|
≤65W
|
|
WAN
|

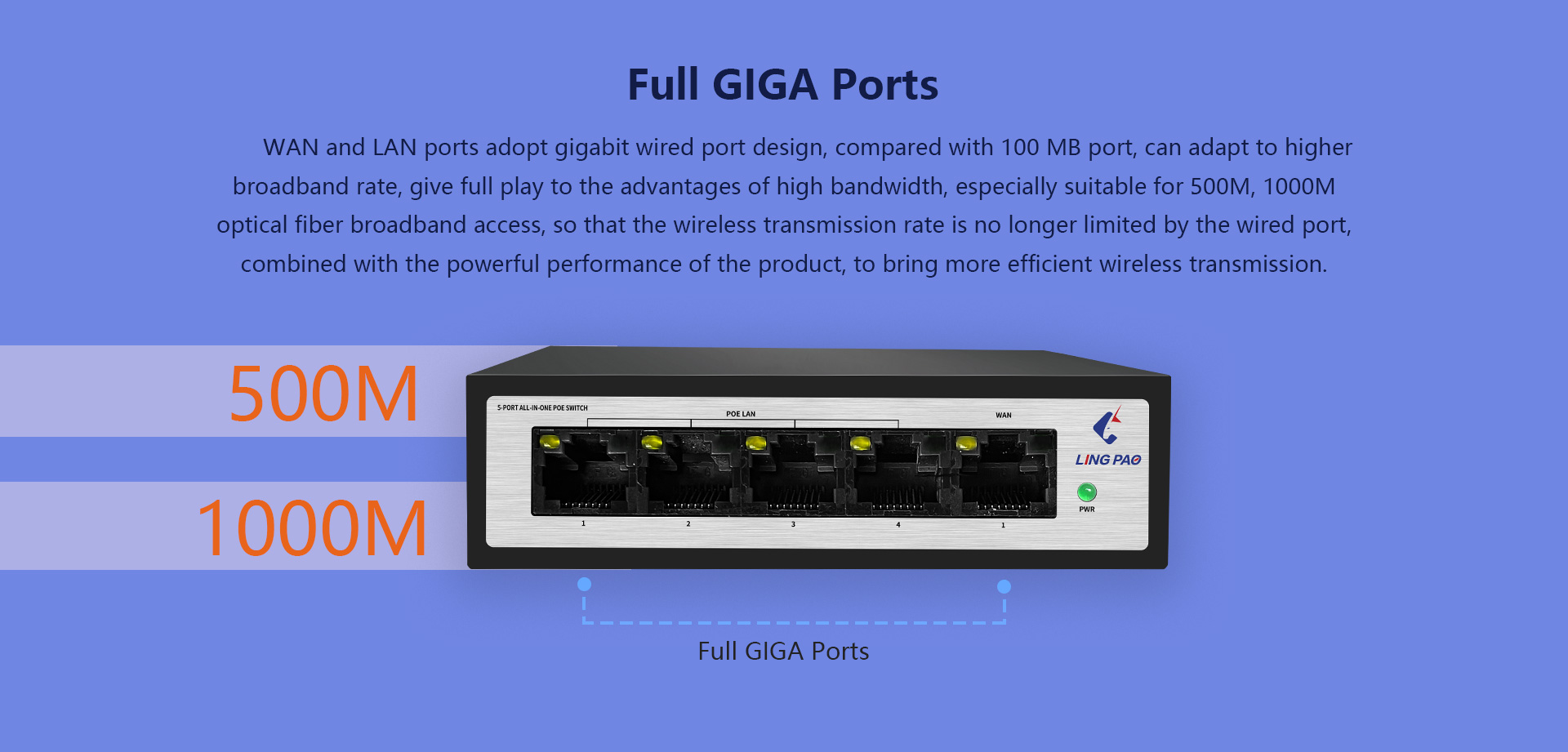

2\1 GIGA adaptive RJ45 port
|
|
LAN
|

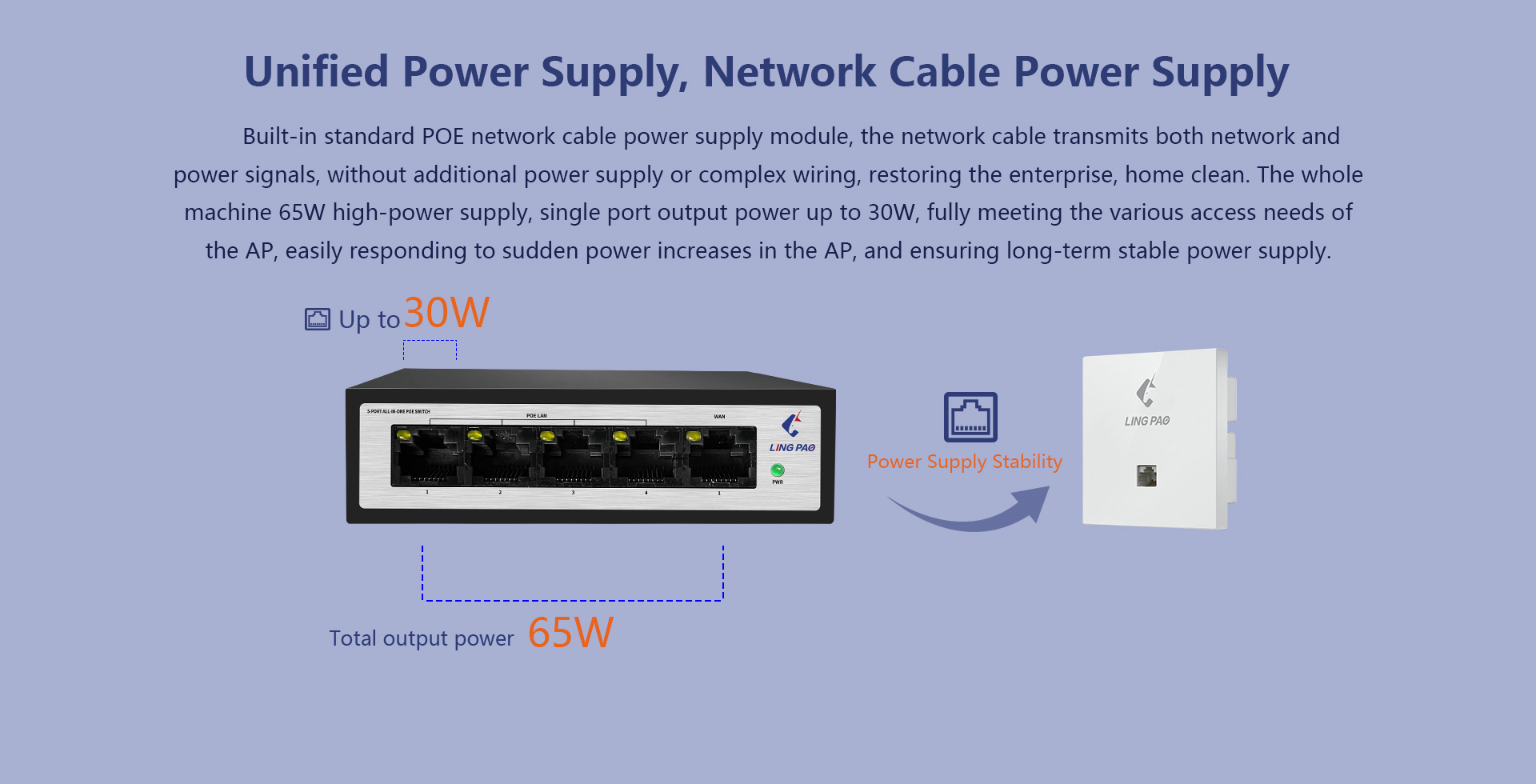

3\4 GIGA adaptive RJ45 ports (1-4 ports support POE)
|
|
Supply voltage
|
52V 1.25A external adapter
|
|
Operating environment
|
Operating temperature: 32℉ to 104℉
|
|
Storage temperature: -40℉ to 158℉
|
|
Operating humidity: 10% to 90%RH non-condensing
|
|
Storage humidity: 5% to 90%RH non-condensing
|
|
Software technical parameter
|
|
Support protocol
|
IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE802.3ab
|
|
Deployment method
|
Gateway deployment
|
Enable the NAT or routing mode. Realize wireless control, behavior management, VPN, flow control, ID authentication, wechat authentication and other functions
|
|

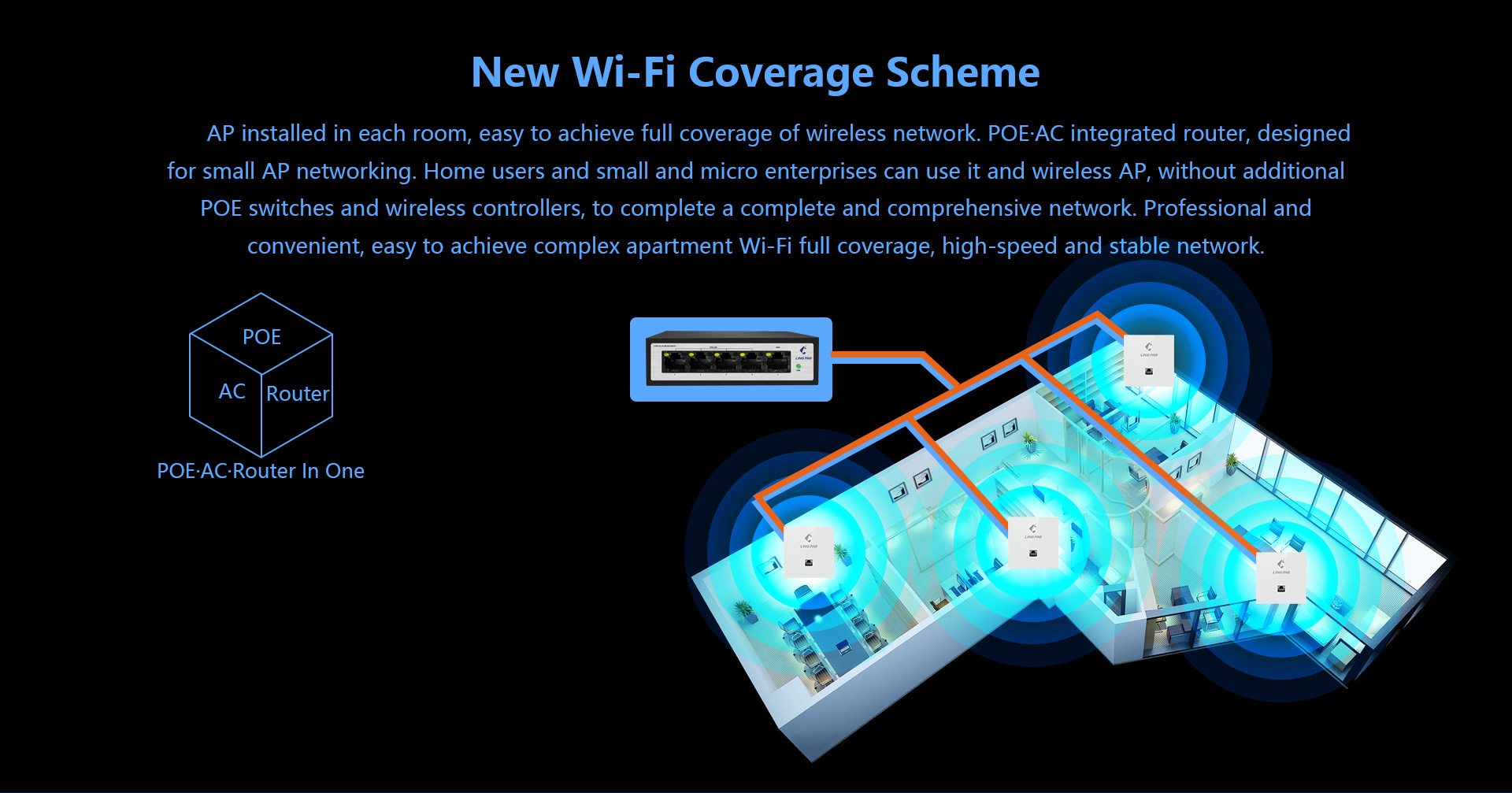

AC wireless control
|
Built-in wireless controller
|
Automatically discover and manage APs connected to the internal network, and issue the required SSID, key, management IP, and other configuration information to them
|
|
Virtual AP
|
Patented "guest network" technology that virtualizes multiple, completely independent wireless services in a single wireless cloud infrastructure physical architecture
|
|
multi-SSID
|
Each wireless network logically has an independent security authentication system, which can isolate data flows of different security levels, such as office, visitor, and financial
|
|
User management
|
Real-time statistics of wireless user information, providing information such as IP, access SSID, access AP, signal strength and rate, and more.
|
|
Supports wireless users to be isolated from each other and can only go to the Internet; and can limit the maximum number of access users of a single AP
|
|
Hide SSID
|
Wireless signal stops active broadcasting
|
|
Fast roaming
|
Supports fast switching across aps, mobile office, and ensures that various applications are always online
|
|
Wireless encryption
|
Open、WPA-PSK、WPA2-PSK、WPA/WPA2、WPA MIX
|
|
Network security
|
Firewall
|
Firewall access rules based on interfaces, IP segments, IP groups, time, TCP/UDP protocol ports, support for one-click addition of ACLs
|
|
ARP defense
|
One click binding/automatic binding of IP/MAC, supporting batch addition of binding lists
|
|
Attack defense
|
Connection limit, MAC filtering, SYN/UDP/ICMP flooding attack defense
|
|
Load balancing
|
When multiple WAN ports are accessed at the same time, it supports intelligent equalization, telecom and Unicom policy routing, comprehensive pass/fail detection, and smooth switching at regular intervals.
|
|
Network address translation
|
Port mapping: Enables continuous and non-continuous port mapping, and supports mapping for different WAN ports
|
|
One-to-one conversion, many-to-one conversion, many-to-many conversion
|
|
UPnP: Automatically opens ports required by applications to the public network, improving application efficiency
|
|
Custom routing
|
Static route: Access the target network and domain name through the specified WAN or LAN port
|
|
Source address routing: Specify customer PC to visit from the specified WAN port
|
|
Policy Routing: You can manually assign scheduling to specific WAN lines for protocol ports such as HTTP 80.
|
|
Dynamic domain name
|
3322.org, DynDNS, oray.cn, and more, multiple WAN interfaces can independently update dynamic domain names
|
|
Virtual private network
|
PPTP/IPsecVPN supports the establishment of point-to-network and network-to-network PPTP tunnels and 128-bit high-strength encryption
|
|
VPN
|
IPSEC tunnel backup function
|
|
Configuration management
|
Full Chinese WEB management, local or remote configuration via SSH, support for timed automatic restart, support for configuration hierarchical protection
|
|
Support configuration file backup and loading, support online upgrade, support policy database automatic update, provide diagnostic tools
|
|
IPTV support
|
Support sharing data lines with IPTV, surfing the Internet and watching TV without interfering with each other.
|
