Specification parameter
|
|
Cellular function
|
|
3G/4G/LTE Internet connection
|
LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA,HSUPA and WCDMA
|
|

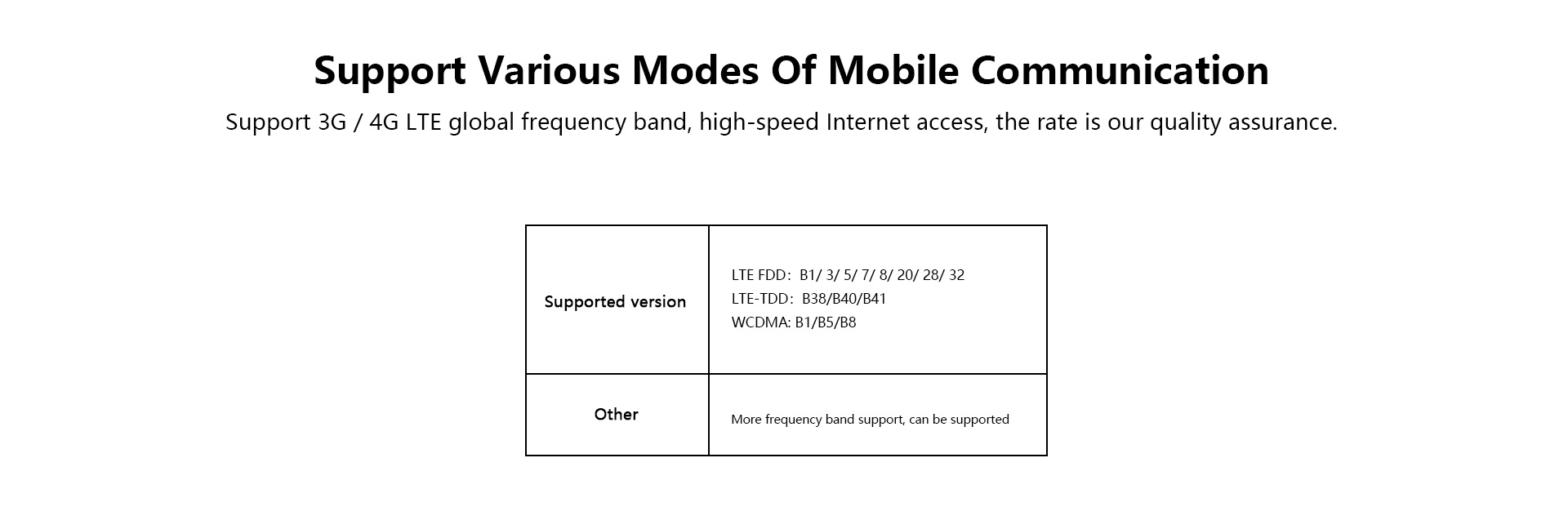

3G/4G broadband band
|
Support A version: North America
|
|
Support J version: Japan
|
|
Supports E version: Europe, Africa, Asia, Brazil
|
|
Support C version: China
|
|
Support LA version: Latin America, Australia, Taiwan
|
|
3G/4G/LTE data rate
|
LTE-FDD. Max. 300Mbps (Downlink)/50Mbps (Uplink)
|
|
LTE-TDD. Max. 220Mbps (Downlink)/30Mbps (Uplink)
|
|
HSPA+. Max. 42Mbps (Downlink)/ 5.76Mbps (Uplink)
|
|
UMTS. Max. 384Kbps (Downlink)/384Kbps (Uplink)
|
|
antenna
|
two × 4G built-in antenna, 2 × 2 MIMO, impedance 50 Ω
|
|
SIM card functions
|
|
SIM card
|
Support 1 x SIM card, 1.8V/3V, or 1 x eSIM card (optional)
|
|
Hardware function
|
|
Hardware interface
|
1 x USB 3.0 port
|
|
Watchdog
|
Built-in watchdog function
|
|
Key
|
Power button, reset
|
|
LED status indicator light
|
Battery, network, Wi-Fi
|
|
Power supply
|
DC 5V/2.5A
|
|
Temperature
|
Operating temperature: 32℉ - 122℃
|
|
Storage temperature: 14℃ - 131℃
|
|
Humidity
|
5%-95% (no condensation)
|
|
Entrance protection
|
IP30
|
|
Dimension
|
5.6inch×2.8inch×0.8inch
|
|
Wi-Fi 5
|
|
WLAN
|
IEEE 802.11 a/b/g/n/ac, Wi-Fi 5.
|
|
Support 2.4G.
|
|
Support dynamic frequency selection (DFS, radar detection)
|
|
Wireless mode
|
Supports AP, client
|
|
Wireless security
|
Supports Wi Fi authentication for WPA, WPA2, WPAI, WEP, and TKIP protocols
|
|
Software function
|
|
Parameter setting
|
Support automatic detection of MNC and MCC parameters for global operators. Built in global operator APN, username, password and other network parameters. Meanwhile, support manual setting of network parameters.
|
|
Dialing mode
|
When the device is powered on, the system automatically dials up and connects to the network
|
|
protocol
|
Support PPTP,L2TP,IPSEC VPN,TCP,UDP,DHCP,HTTP,DDNS,TR-069,HTTPS,SSH,SNMP and other protocols.
|
|
Route
|
Supports static routes and multiple routing tables
|
|
APN network access
|
Support multiple APN access networks
|
|
System assurance
|
Support system auto-detection mechanism, system anomaly or crash automatic recovery
|
|
Data link assurance
|
Built-in link maintenance and self-recovery mechanisms
|
|
Firewall
|
Support flexible access control for TCP, UDP, and ICMP packets; Supports port mapping, NAT and other functions
|
|
DDNS
|
Support some service providers, other service providers can manually configure
|
|
Firmware upgrade
|
Support local webUI and remote OTA to upgrade firmware
|
|
VLAN
|
Support VLAN function
|
|
Embedded system
|
OpenWRT 21.02
|
|
Application development
|
Support secondary development of application functions based on our device motherboard software
|
