Specification parameter
|
|
Cellular function
|
|

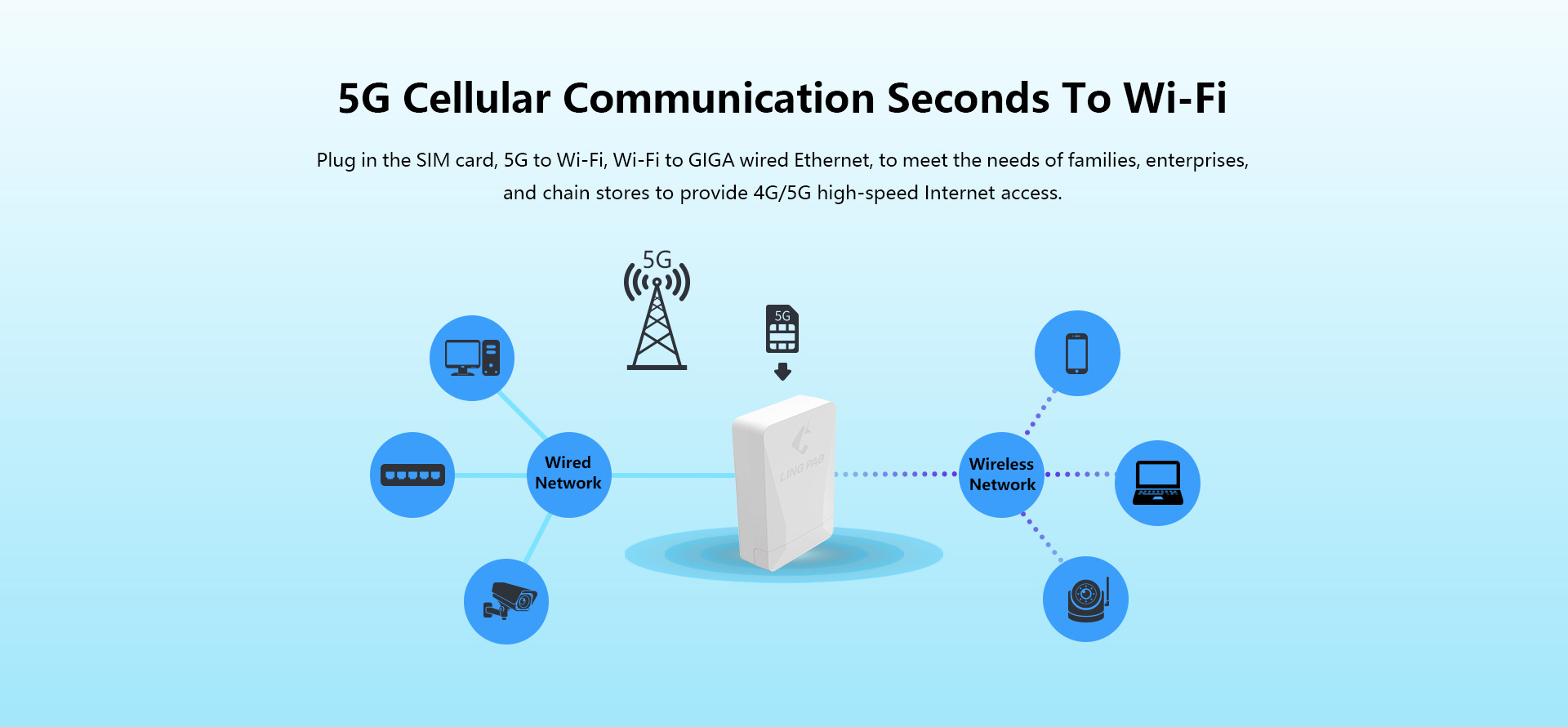

3G/4G/5G Internet connection
|
5G NR SA and NSA,LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA,HSUPA ang WCDMA
|
|
3G/4G/5G broadband band
|
Support A version: North America
|
|
Support J version: Japan
|
|
Supports E version: Europe, Africa, Asia, Brazil
|
|
Support C version: China
|
|
Support LA version: Latin America, Australia, Taiwan
|
|
3G/4G/5G data rate
|
5G NSA. Max. 3.4Gbps (Downlink)/600Mbps (Uplink)
|
|
5G SA. Max. 2.4Gbps (Downlink)/1Gbps (Uplink)
|
|
LTE. Max. 1.6Gbps (Downlink)/200Mbps (Uplink)
|
|
HSPA+. Max. 42Mbps (Downlink)/ 5.76Mbps (Uplink)
|
|
WCDMA Max 384Kbps (downlink)/384Kbps (Uplink)
|
|

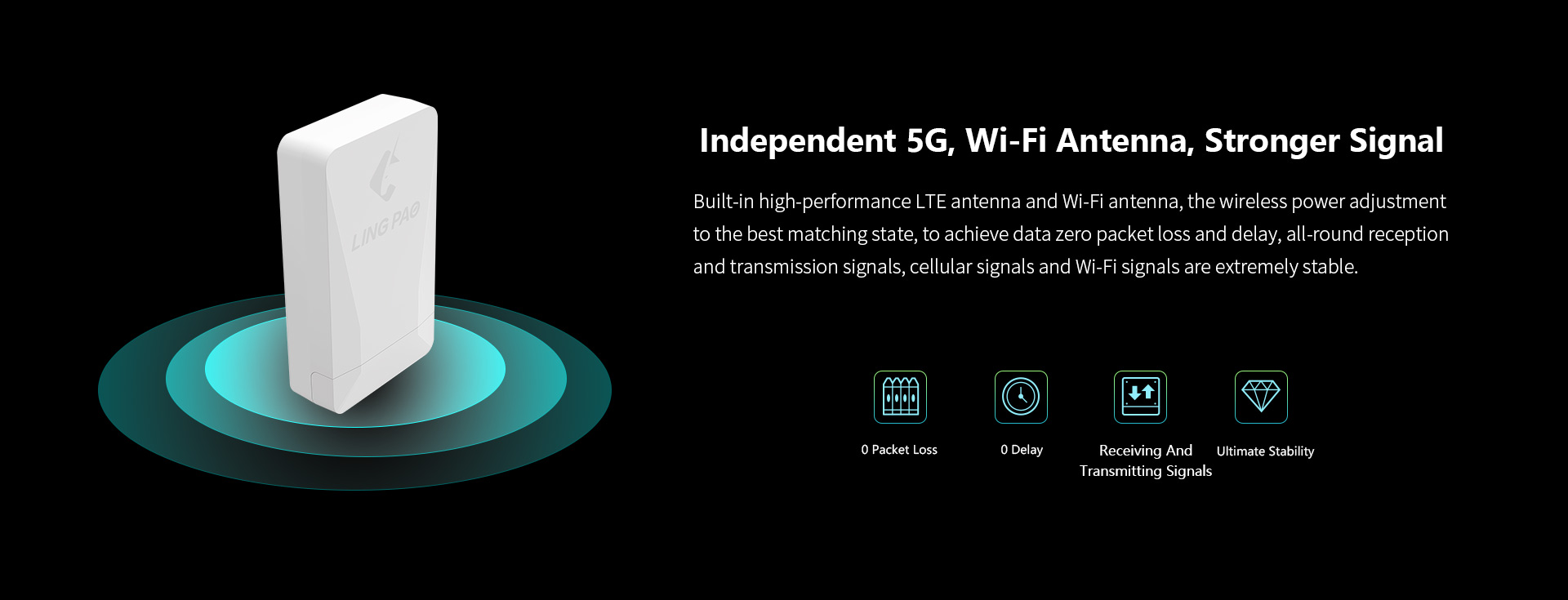

antenna
|
4* 4G/5G built-in antenna, 4*4 MIMO, impedance 50 Ω
|
|
SIM card functions
|
|
SIM card
|
Support 1 x SIM card, 1.8V/3V, or 1 x eSIM card (optional)
|
|
Hardware function
|
|
Hardware interface
|
1 x LAN 10/100/1000/2500Mbps port, 1 x USB 3.1 port
|
|
Watchdog
|
Built-in watchdog function
|
|
Key
|
Reset
|
|
LED status indicator light
|
PWR ,SYS, Net, LAN,WLAN
|
|
Power supply
|
DC 24V/1A
|
|
Temperature
|
Operating temperature: -22℉ - 158℃
|
|
Storage temperature: -31℃ - 167℃
|
|
Humidity
|
5%-95% (no condensation)
|
|

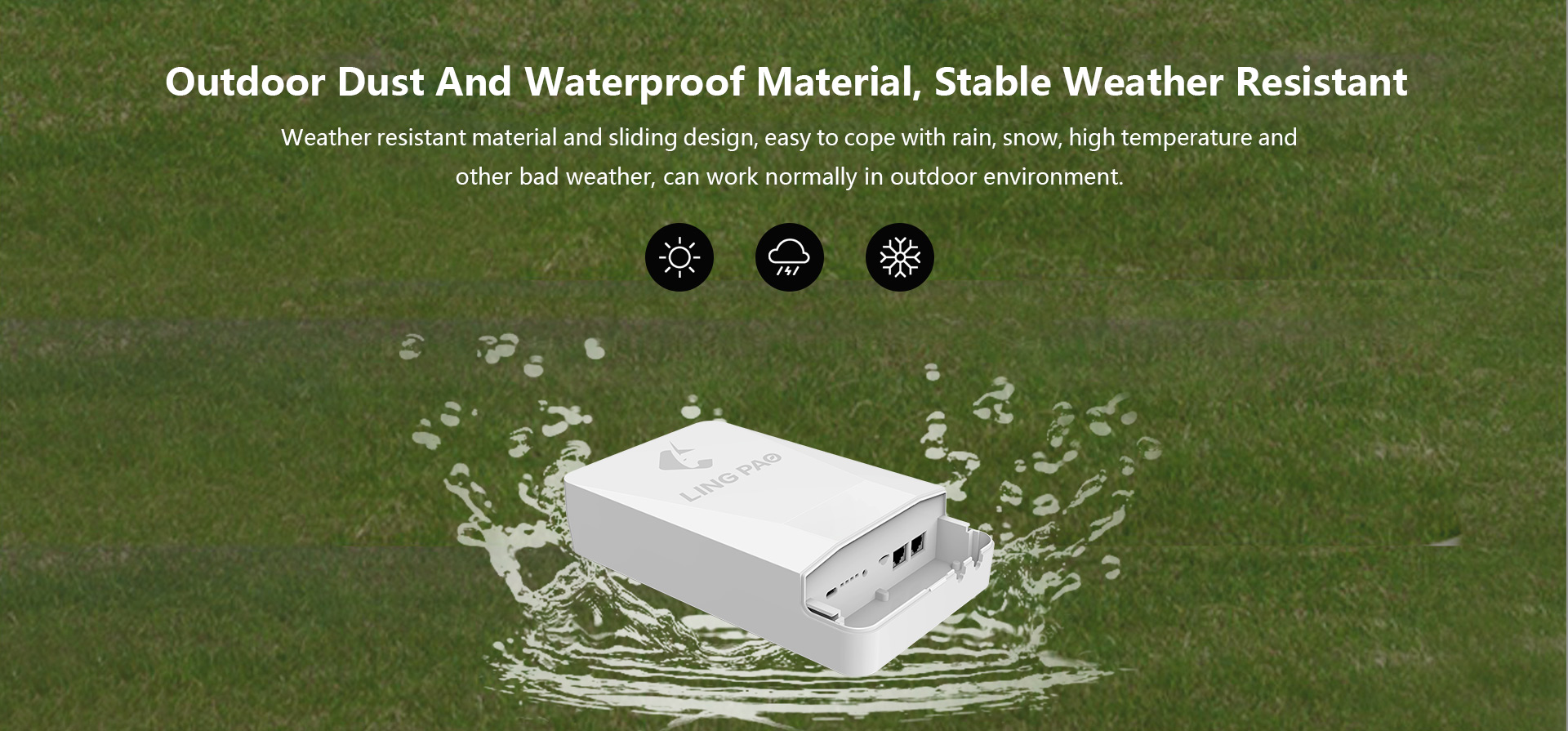

Entrance protection
|
IP65
|
|
Dimension
|
9.9inch×5.8inch×2.7inch
|
|
Software function
|
|
Parameter setting
|
Support automatic detection of MNC and MCC parameters for global operators. Built in global operator APN, username, password and other network parameters. Meanwhile, support manual setting of network parameters.
|
|
Dialing mode
|
When the device is powered on, the system automatically dials up and connects to the network
|
|
protocol
|
Support PPTP,L2TP,GRE,TCP,UDP,DHCP,HTTP,DDNS,TR-069,HTTPS,SSH and other protocols.
|
|
Route
|
Supports static routes and multiple routing tables
|
|
Network bridge
|
Support 4G/5G bridge mode function
|
|
APN network access
|
Support multiple APN access networks
|
|
System assurance
|
Support system auto-detection mechanism, system anomaly or crash automatic recovery
|
|
Data link assurance
|
Built-in link maintenance and self-recovery mechanisms
|
|
Firewall
|
Support flexible access control for TCP, UDP, and ICMP packets; Supports port mapping, NAT and other functions
|
|
DDNS
|
Support some service providers, other service providers can manually configure
|
|
Firmware upgrade
|
Support local webUI and remote OTA to upgrade firmware
|
|
VLAN
|
Support VLAN function
|
|
Embedded system
|
Linux 3.4
|
|
Application development
|
Support secondary development of application functions based on our device motherboard software
|
