Specification parameter
|
|
Cellular function
|
|
3G/4G/LTE Internet connection
|
LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA
|
|

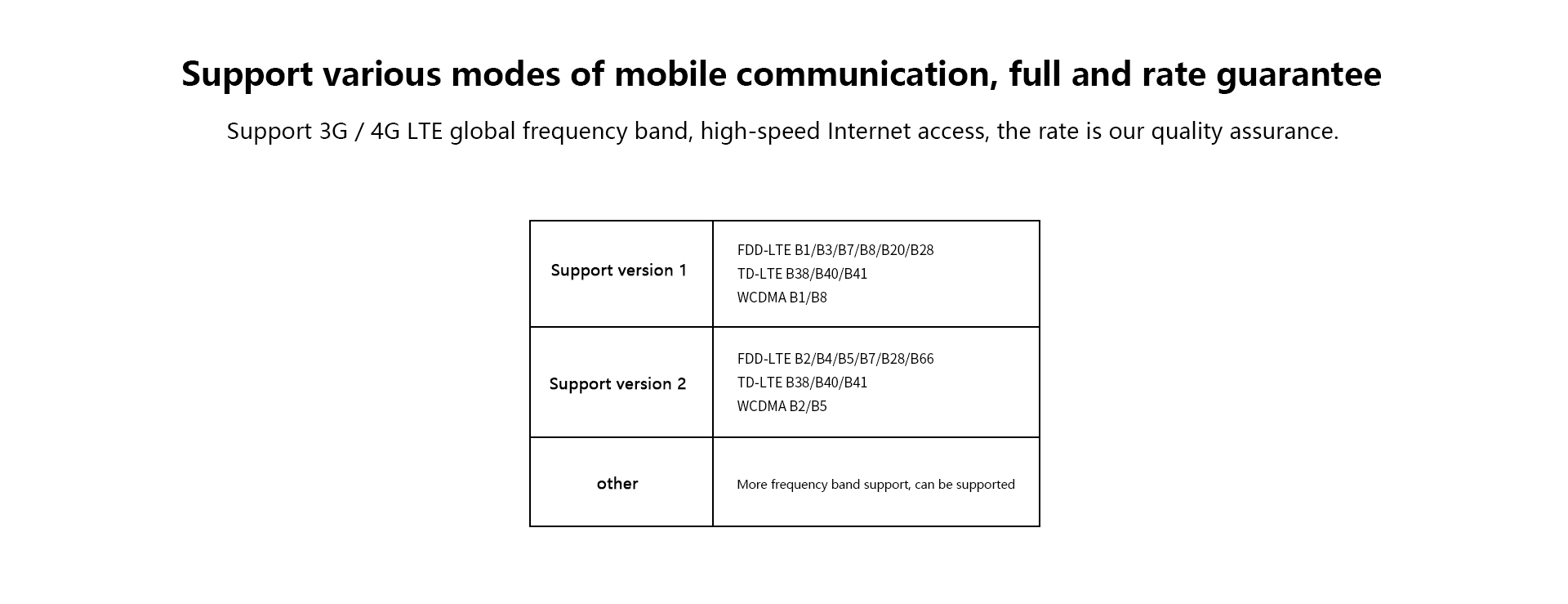

3G/4G broadband band
|
Support A version: North America
|
|
Support J version: Japan
|
|
Supports E version: Europe, Africa, Asia, Brazil
|
|
Support C version: China
|
|
Support LA version: Latin America, Australia, Taiwan
|
|
3G/4G/LTE data rate
|
LTE.
|
|
LTE FDD: Max. 150Mbps (Downlink)/ Max. 50Mbps (Uplink)
|
|
LTE TDD: Max 130Mbps (Downlink)/Max 30Mbps (uplink)
|
|
UMTS.
|
|
DC-HSDPA: Max. 42Mbps (downlink)
|
|
HSUPA: Up to 5.76Mbps (uplink)
|
|
WCDMA: Max 384Kbps (downlink)/Max 384Kbps (uplink)
|
|
GSM.
|
|
EDGE: Max 296Kbps (downlink)/Max 236.8Kbps (uplink)
|
|
GPRS: Max 107Kbps (downlink)/Max 85.6Kbps (uplink)
|
|
antenna
|

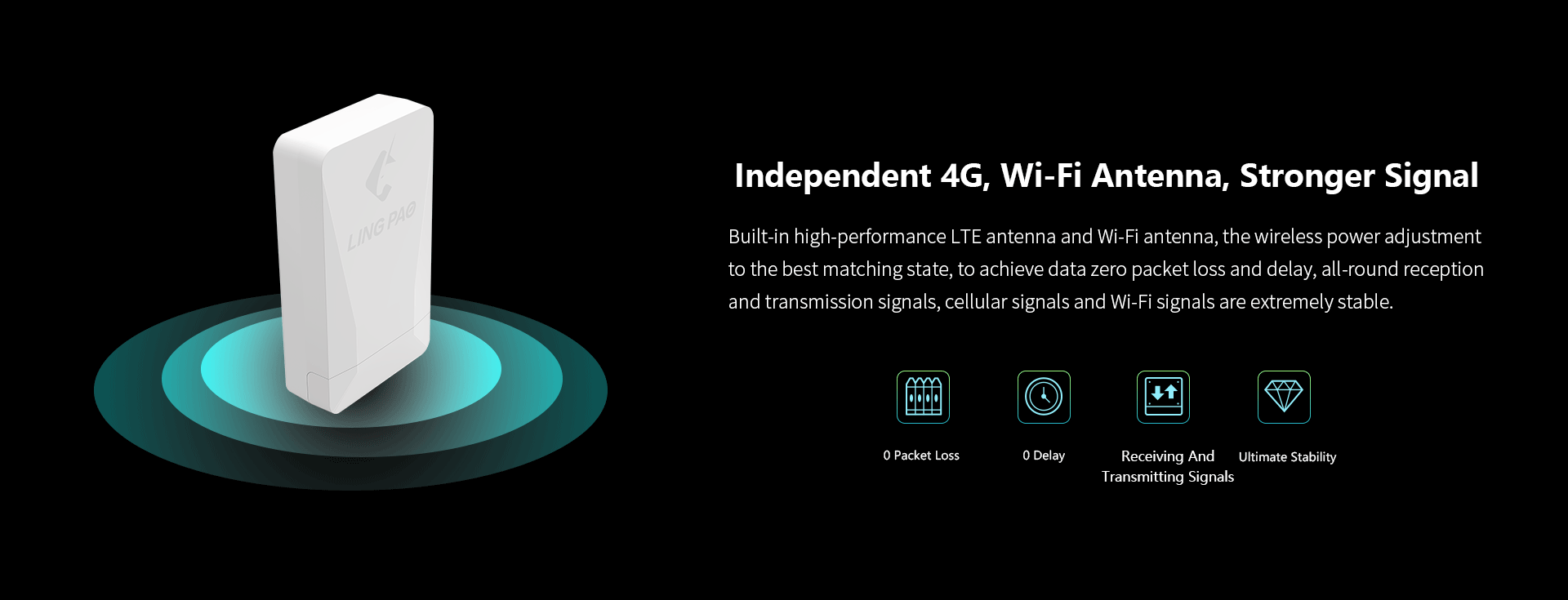

2×2 MIMO 4G LTE built-in directional antenna, impedance 50 Ω.
|
|
1× GPS antenna (optional)
|
|
SIM card functions
|
|
SIM card
|
Support 1 x SIM card, 1.8V/3V, or 1 x eSIM card (optional)
|
|
Hardware function
|
|
Hardware interface
|
2 x LAN 10/100Mbps port, 1 x USB 2.0 interface, 1 x RJ11 VOLTE voice (optional)
|
|
Watchdog
|
Built-in watchdog function
|
|
Key
|
Reset
|
|
LED status indicator light
|
PWR ,SYS, Net, WAN, LAN,WLAN
|
|
Power supply
|
DC 18V/1A
|
|
Temperature
|
Operating temperature: -4℉ - 149℃
|
|
Storage temperature: -22℃ - 158℃
|
|
Humidity
|
5%-95% (no condensation)
|
|
Entrance protection
|
IP30
|
|
Dimension
|
9.9inch×5.8inch×2.7inch
|
|
Wi-Fi
|
|
WLAN
|
IEEE 802.11b/g/n
|
|
2.4 GHz supports 20MHz/40MHz channel bandwidth
|
|

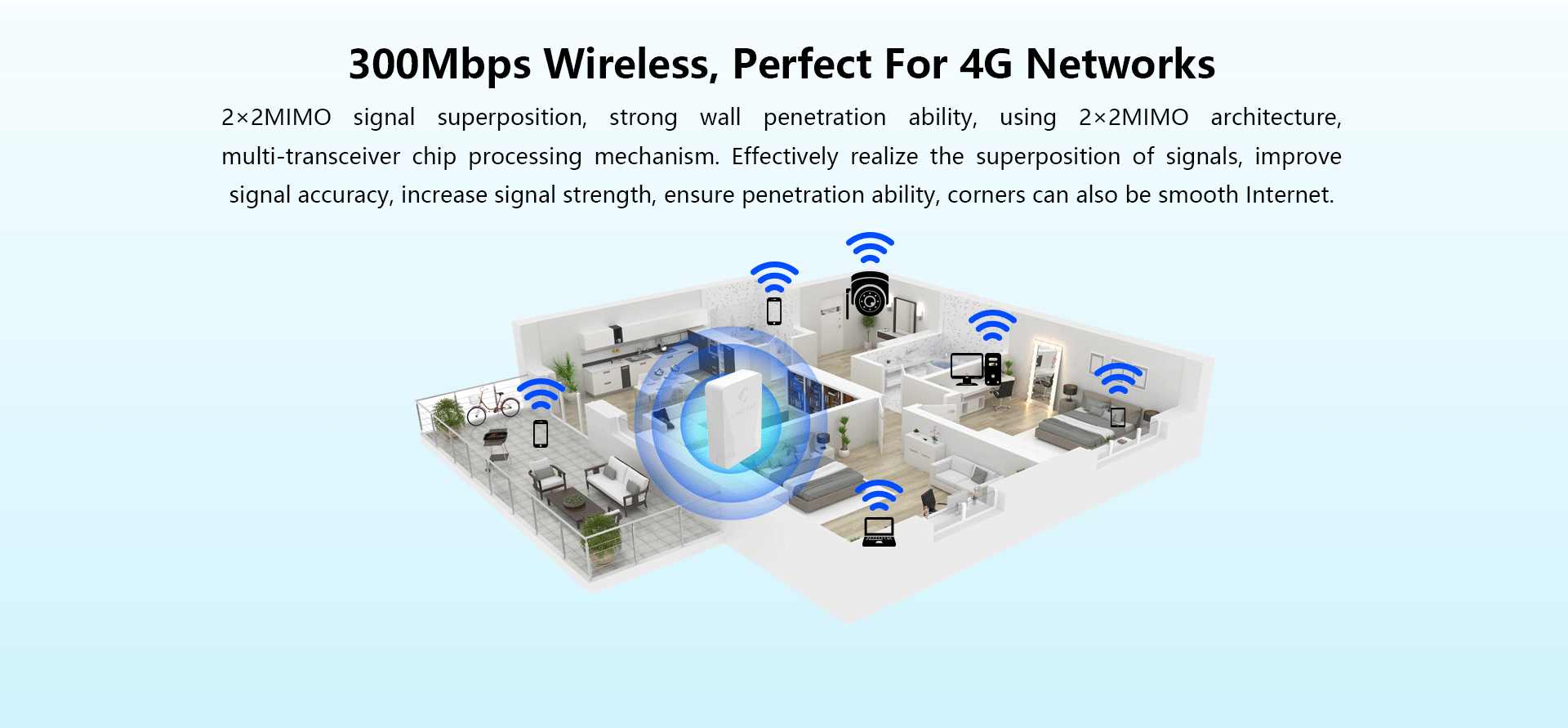

2T/2R 300Mbps maximum bandwidth in 2.4GHz band
|
|
Wireless mode
|
Supports AP, client
|
|

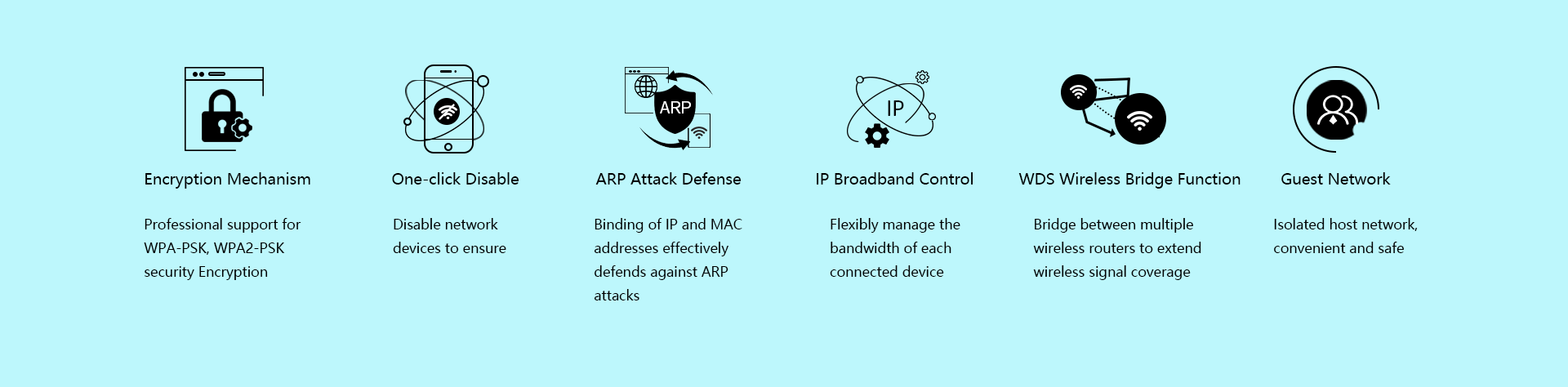

Wireless security
|
Supports Wi Fi authentication for WPA, WPA2, WPAI, WEP, and TKIP protocols
|
|
Software function
|
|
Parameter setting
|
Support automatic detection of MNC and MCC parameters for global operators. Built in global operator APN, username, password and other network parameters. Meanwhile, support manual setting of network parameters.
|
|
Dialing mode
|

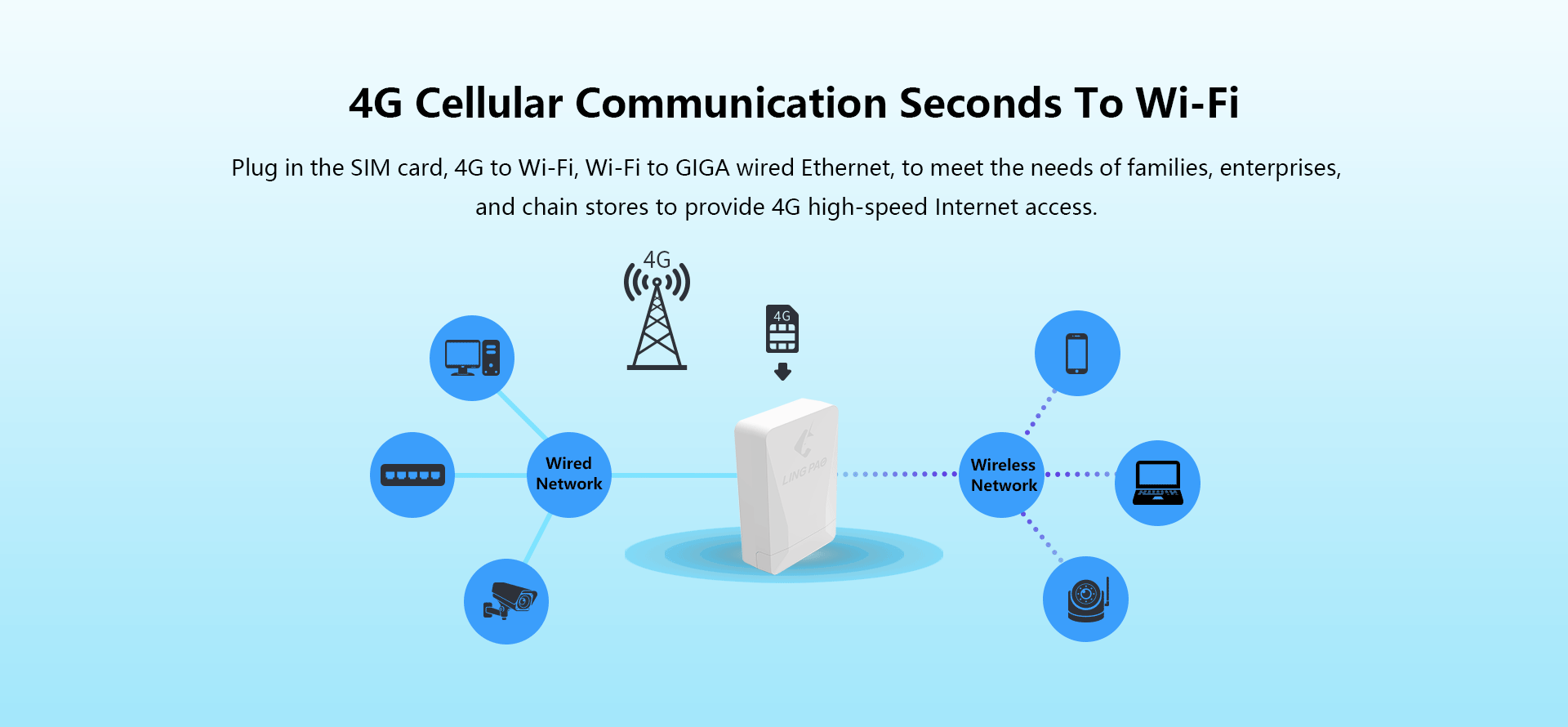

When the device is powered on, the system automatically dials up and connects to the network
|
|
protocol
|
Support PPTP,L2TP,IPSEC VPN,TCP,UDP,DHCP,HTTP,DDNS,TR-069,HTTPS,SSH,SNMP and other protocols.
|
|
Route
|
Supports static routes and multiple routing tables
|
|
Network bridge
|
Support 4G bridge mode function
|
|
APN network access
|
Support multiple APN access networks
|
|
System assurance
|
Support system auto-detection mechanism, system anomaly or crash automatic recovery
|
|
Data link assurance
|
Built-in link maintenance and self-recovery mechanisms
|
|
Firewall
|
Support flexible access control for TCP, UDP, and ICMP packets; Supports port mapping, NAT and other functions
|
|
DDNS
|
Support some service providers, other service providers can manually configure
|
|
Firmware upgrade
|
Support local webUI and remote OTA to upgrade firmware
|
|
VLAN
|
Support VLAN function
|
|
Embedded system
|
OpenWRT 18.06
|
|
Application development
|
Support secondary development of application functions based on our device motherboard software
|
