Specification parameter
|
|
Cellular function
|
|
3G/4G Internet connection
|
LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA,HSUPA and WCDMA
|
|
3G/4G broadband band
|
Support A version: North America
|
|
Support J version: Japan
|
|
Supports E version: Europe, Africa, Asia, Brazil
|
|
Support C version: China
|
|
Support LA version: Latin America, Australia, Taiwan
|
|
3G/4G data rate
|
LTE
|
|
LTE FDD. Max. 150Mbps (Downlink)/50Mbps (Uplink)
|
|
LTE tdd. Max. 130Mbps (Downlink)/30Mbps (Uplink)
|
|
UMTS.
|
|
DC-HSDPA. MAX. 42Mbps (Downlink)
|
|
HSUPA. Max. 5.76Mbps (Uplink)
|
|
WCDMA. Max. 384Kbps (Downlink)/Max 384Kbps (Uplink)
|
|
antenna
|
2*2 MIMO 4G LTE built-in antenna, impedance 50 Ω
|
|
SIM card functions
|
|
SIM card
|
Support 1 x SIM card, 1.8V/3V, or 1 x eSIM card (optional)
|
|
Hardware function
|
|
Hardware interface
|
1 x LAN 10/100Mbps port, 1 x USB 2.0 interface, 1 x RJ11 VOLTE voice (optional)
|
|
Watchdog
|
Built-in watchdog function
|
|
Key
|
Reset, WPS
|
|
LED status indicator light
|
Power, 5G, Wi-Fi,LAN
|
|
Power supply
|
DC 12V/1A
|
|
Temperature
|
Operating temperature: 32℉-122℃
|
|
Storage temperature: 14℃-131℃
|
|
Humidity
|
5%-95% (no condensation)
|
|
Entrance protection
|
IP30
|
|
Dimension
|
6.2inch×5.0inch×1.5inch
|
|
Wi-Fi
|
|
WLAN
|
IEEE 802.11AX,Wi-Fi 6
|
|

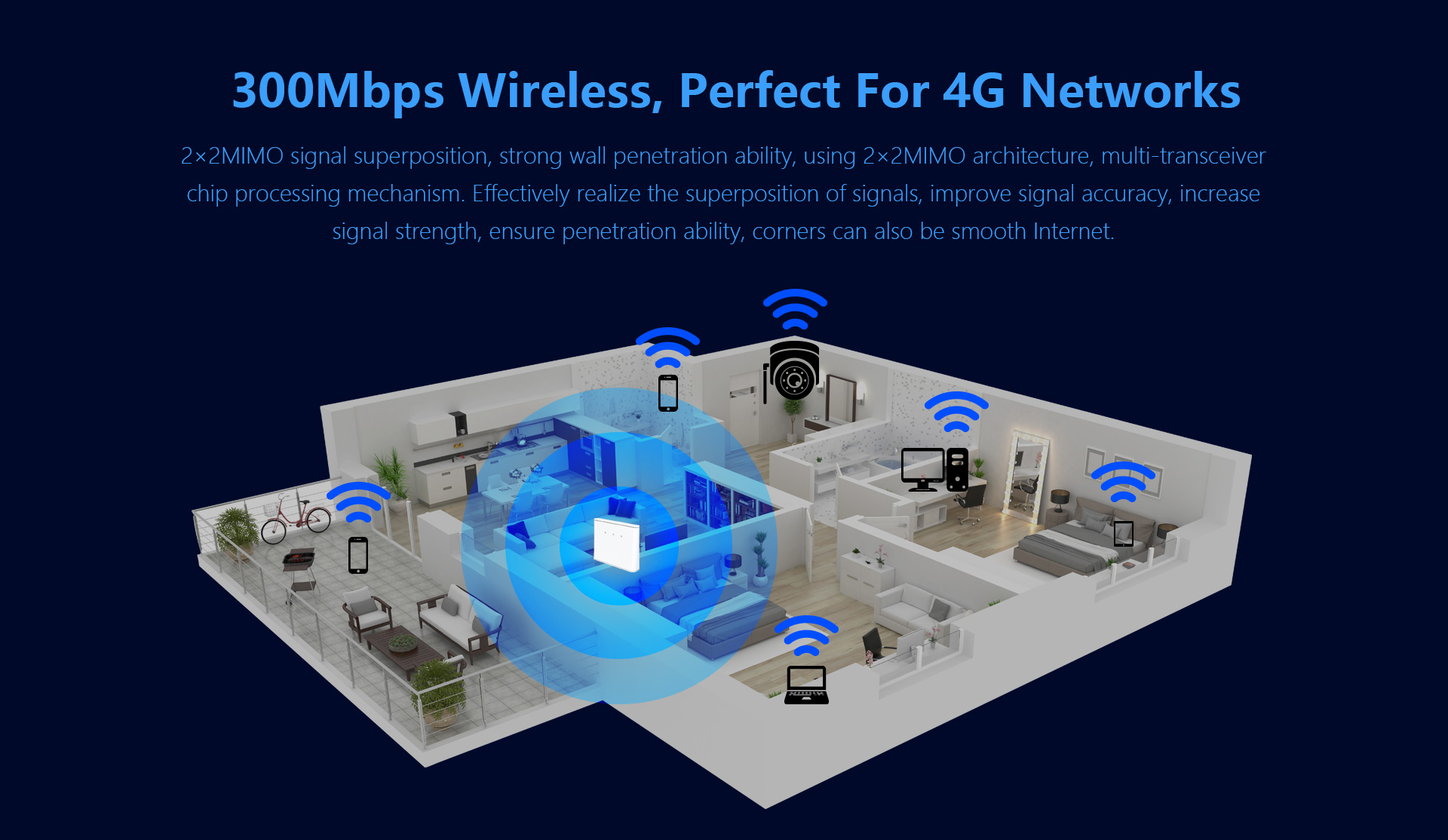

Maximum bandwidth of 300Mbps in the 2T/2R 2.4GHz frequency band
|
|
2.4GHz Supports 20MHz / 40MHz channel bandwidth
|
|
Wireless mode
|
Supports AP mode, client
|
|
Wireless security
|
Supports WPA, WPA2,WPAI, WEP, TKIP encryption
|
|
Software function
|
|
Parameter setting
|
Support automatic detection of MNC and MCC parameters for global operators. Built in global operator APN, username, password and other network parameters. Meanwhile, support manual setting of network parameters.
|
|
Dialing mode
|
When the device is powered on, the system automatically dials up and connects to the network
|
|
protocol
|
Support PPTP,L2TP,GRE,TCP,UDP,DHCP,HTTP,DDNS,TR-069,HTTPS,SSH and other protocols.
|
|
Route
|
Supports static routes and multiple routing tables
|
|
Network bridge
|
Support 4G bridge mode function
|
|
APN network access
|
Support multiple APN access networks
|
|
System assurance
|
Support system auto-detection mechanism, system anomaly or crash automatic recovery
|
|
Data link assurance
|
Built-in link maintenance and self-recovery mechanisms
|
|
Firewall
|
Support flexible access control for TCP, UDP, and ICMP packets; Supports port mapping, NAT and other functions
|
|
DDNS
|
Support some service providers, other service providers can manually configure
|
|
Firmware upgrade
|
Support local webUI and remote OTA to upgrade firmware
|
|
VLAN
|
Support VLAN function
|
|
Embedded system
|
Linux 3.4
|
|
Application development
|
Support secondary development of application functions based on our device motherboard software
|
